IBM R400 114

Table 30. Removal steps of system board and PC Card/Express Card slots (or

ExpressCard/Smart Card slots or ExpressCard/7-in-1 Media Card Reader slots) bezel

assembly (continued)

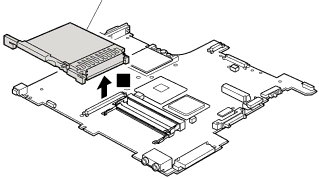

Turn the system board over, and then disconnect the PC Card/ExpressCard slots

assembly or ExpressCard/Smart Card slots assembly or ExpressCard/7-in1

Media Card Reader slots assembly a from the system board.

When installing: Make sure that the connector of the card slot assembly is

attached to the system board firmly.

114 ThinkPad T400 and R400Hardware Maintenance Manual
