IBM R400 e, cd

Table 30. Removal steps of system board and PC Card/Express Card slots (or

ExpressCard/Smart Card slots or ExpressCard/7-in-1 Media Card Reader slots) bezel

assembly

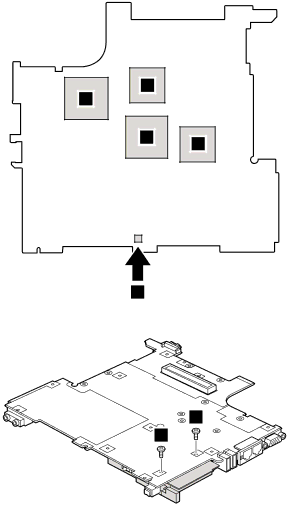

Following components soldered on the top side of the system board are

extremely sensitive. When you service the system board, avoid any kind of

rough handling.

a CPU b Video chip c MCH (Memory Controller Hub) d ICH (I/O Controller Hub) e Accelerometer chip for the HDD Active Protection System™

cd

e

Step Screw (quantity) Color Torque

1 M2 × 2.7 mm, flat-head, nylon-coated (2) Black 0.167 Nm(1.7 kgfcm)

ThinkPad T400 and R400 113
