Nighthawk AC1750 Smart WiFi Router

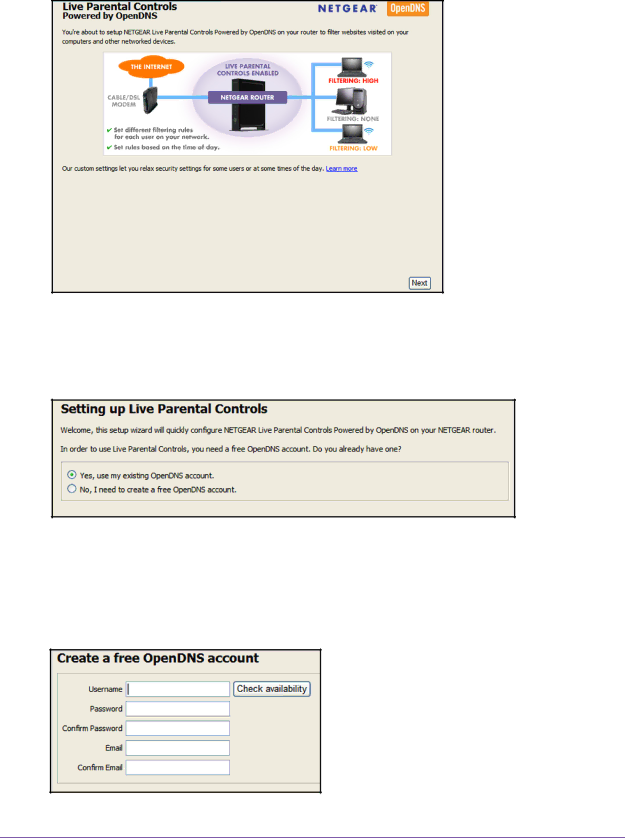

After installation, Live Parental Controls automatically starts.

7.Click the Next button.

8.Read the note, and click the Next button again.

Because Live Parental Controls uses free OpenDNS accounts, you are prompted to log in or create a free account.

9.Select the radio button that applies to you:

•If you already set up an OpenDNS account, leave the Yes radio button selected.

•If you did not set up an OpenDNS account, select the No radio button.

10.Click the Next button.

If you are creating an account, the following screen displays:

Control Access to the Internet

58

Image 58

NETGEAR R6700 user manual Control Access to the Internet
