Hitachi C 7YA instruction manual Adjustsing the SAW Prior to USE

Page 14

English

7.Check if clamp lever and wing bolt are tightened.

If the wing bolt to adjust cutting depth (Fig. 12) and wing bolt to adjust angle of inclination (Fig. 13) are loose, injury can result. Make sure that they are tightened securely.

8.Check performance of safety cover

WARNING: Make absolutely sure that the safety cover is not fixed. Also, check and see if it can move smoothly. If the saw blade is kept exposed injury can result.

The safety cover (refer to Fig. 8) serves to protect your body from coming into contact with the saw blade. Make absolutely certain that the cover smoothly performs to cover the saw blade. If the safety cover should not move smoothly, never use it without repairing it. In such a case, get in touch with the store where you bought the circular saw or the HITACHI Authorized Service Center for necessary repair.

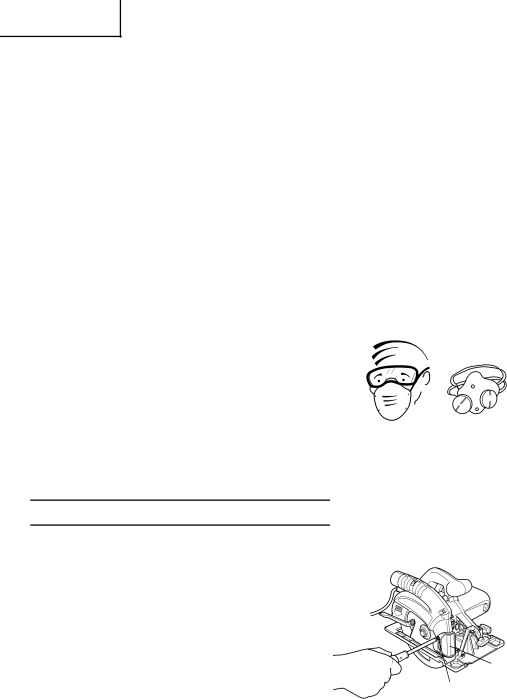

9.Protective glasses and dustproof mask (Fig. 10)

When you use the tool, make certain that you wear the protective glasses and the dustproof mask.

10.Dust bag or dust guide

Make it absolutely sure when you use the tool to mount any one of the dust bag or dust guide that is provided as a standard accessory. For mounting details and refer to [use of dust bag] in Page 17, [use of dust guide] in Page 17.

11.Check if saw blade is tightened

Refer to [mounting and dismounting the saw

blade] in Page 16, and make sure that the flangeFig. 10 bolt is tightened securely.

ADJUSTSING THE SAW PRIOR TO USE

1. Adjustment of slide cover

WARNING:

To avoid serious accidents, ensure the switch is in OFF position, and disconnect the plug from the receptacle.

You can move the slide cover of the tool up and down. The slide cover is mounted in the lowermost position when the tool is shipped from the factory. If you use it in the originally mounted position for right-angle cutting, you can reduce the scattering sawdust particles.

Slide

Cover

Screw

Fig. 11

14
