Using Class of Service Advanced Options

7-5

For example, if only TCP/IP is installed, do not enter the socket range for IPX, as it will adversely affect driver performance.

5Once the Range Start, Range End, and Protocol are entered press Add.

The range is added to the list, as shown in Figure 7-3.

c

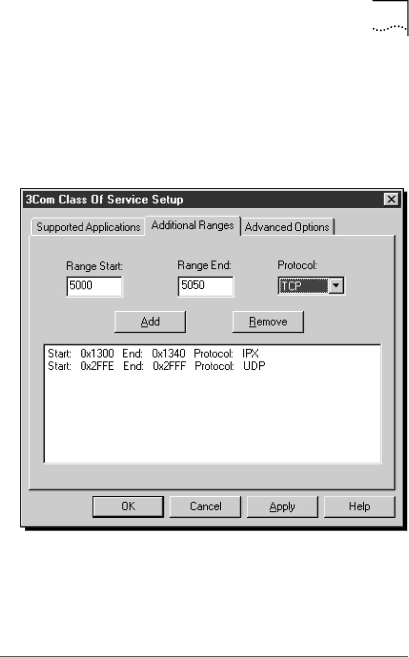

Figure 7-3Class of Service Additional Ranges Screen with

Added Ranges

6Click OK when you are finished.

To remove a range, select the range in the list and click Remove.

Using Class of Service Advanced Options

You can use Class of Service Advanced Options to adjust the network driver’s handling of certain types of Class of Service traffic. In general, you do not need to change these values. Contact your network administrator before using these options.
