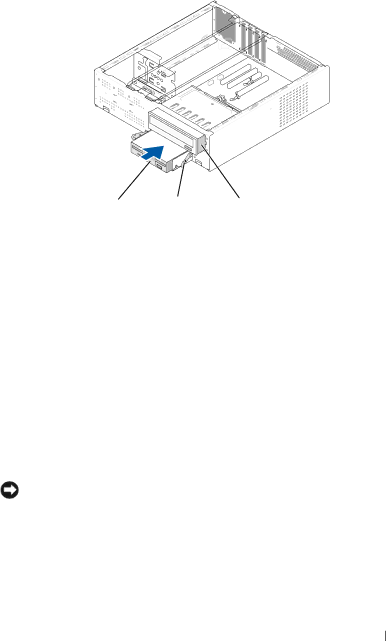

1 floppy drive

2 spring clamp

3 CD or DVD drive

11Attach the power and data cables to the floppy drive.

12Connect the other end of the data cable to the connector labeled "FLOPPY" on the system board (see "System Board Components" on page 107) and route the cable through the clip on the shroud.

13Check all cable connections, and fold cables out of the way to avoid blocking airflow between the fan and cooling vents.

14Replace the CD or DVD drive. (see "Installing a CD or DVD Drive" on page 143).

15Replace the bezel (see "Replacing the Bezel" on page 124).

16Replace the computer cover (see "Replacing the Computer Cover" on page 165).
