Place the card in the connector and press down firmly. Ensure that the card
is fully seated in the slot.
11
Fix the support bracket and then press down the card retention bracket to
seat it on its slot ensuring that:
• The guide clamp is aligned with the guide notch.
• The tops of all cards and filler brackets are flush with the alignment bar.
• The notch in the top of the card or filler bracket fits around the
alignment guide.

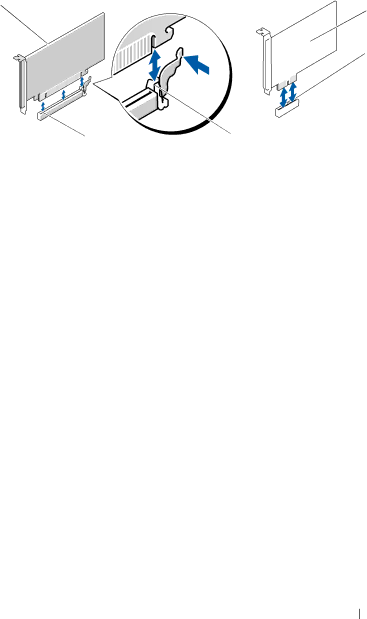

1PCI Express x16 card 2securing tab 3PCI Express x1
card
4PCI Express x1 card
slot
5PCI Express x16 card
slot
1
5
3
4
2
