Page 53

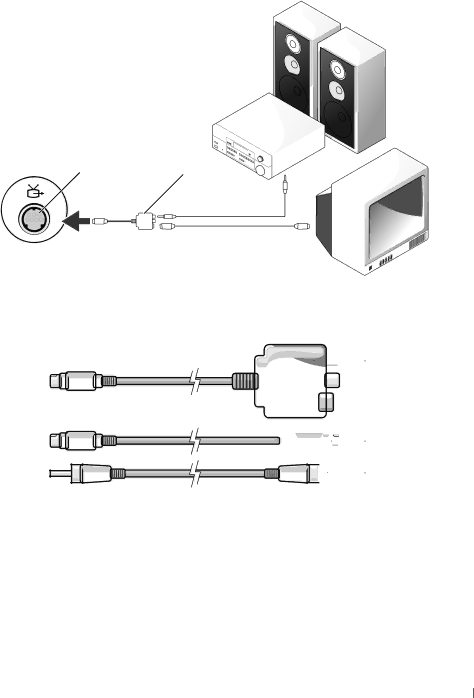

S-Video and S/PDIF Digital Audio

S-Video and S/PDIF Digital Audio

12

1 S-video TV-out connector 2

composite video adapter

1

2

3

1 composite video adapter

2

S-video cable

3

S/PDIF digital audio cable

1Turn off the computer and the TV and/or the audio device that you want to connect.

2Connect the composite video adapter to the S-video TV-out connector on your computer.

3Plug one end of the S-video cable into the S-video output connector on the composite video adapter.

Using Multimedia

53
