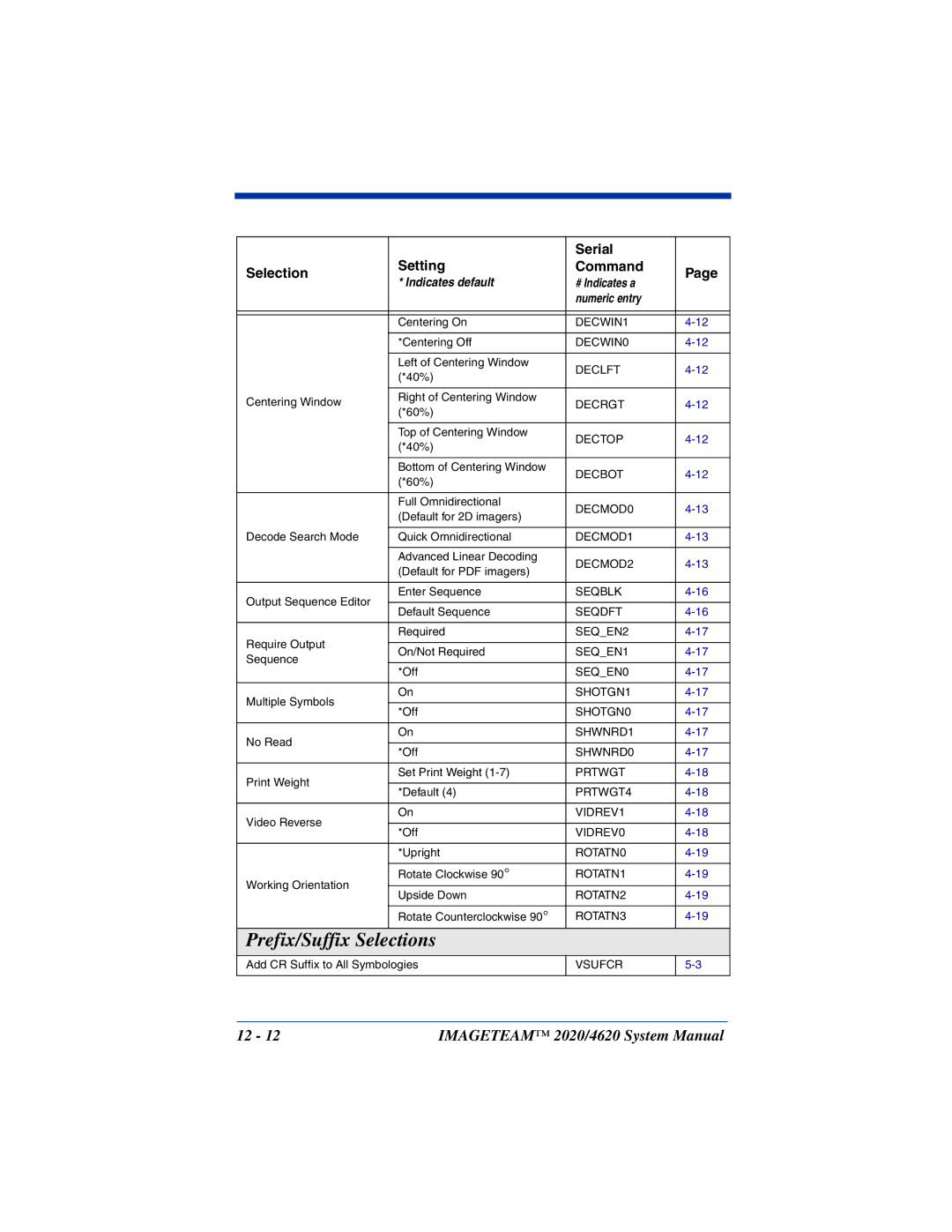

12 - 12 IMAGETEAM™ 2020/4620 System Manual

Centering Window
Centering On DECWIN1 4-12
*Centering Off DECWIN0 4-12
Left of Centering Window
(*40%) DECLFT 4-12
Right of Centering Window
(*60%) DECRGT 4-12
Top of Centering Window
(*40%) DECTOP 4-12
Bottom of Centering Window
(*60%) DECBOT 4-12
Decode Search Mode
Full Omnidirectional
(Default for 2D imagers) DECMOD0 4-13
Quick Omnidirectional DECMOD1 4-13
Advanced Linear Decoding
(Default for PDF imagers) DECMOD2 4-13
Output Sequence Editor Enter Sequence SEQBLK 4-16
Default Sequence SEQDFT 4-16
Require Output
Sequence
Required SEQ_EN2 4-17
On/Not Required SEQ_EN1 4-17
*Off SEQ_EN0 4-17
Multiple Symbols On SHOTGN1 4-17
*Off SHOTGN0 4-17
No Read On SHWNRD1 4-17
*Off SHWNRD0 4-17
Print Weight Set Print Weight (1-7) PRTWGT 4-18
*Default (4) PRTWGT4 4-18
Video Reverse On VIDREV1 4-18
*Off VIDREV0 4-18
Working Orientation
*Upright ROTATN0 4-19
Rotate Clockwise 90°ROTATN1 4-19
Upside Down ROTATN2 4-19
Rotate Counterclockwise 90°ROTATN3 4-19
Prefix/Suffix Selections
Add CR Suffix to All Symbologies VSUFCR 5-3
Selection Setting
* Indicates default

Serial

Command
# Indicates a
numeric entry
