7.Close the rear cover.
To complete the loading procedure, follow the front panel instructions.

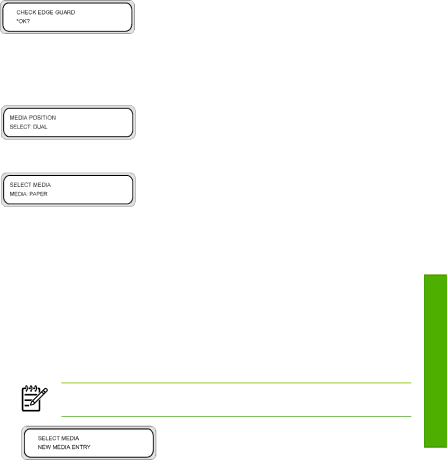

8.Confirm the position of the media edge guards and press the OK key. The media width checking process starts.
9.Select DUAL in the media selection on the front panel.
10.Select a media type.
a.Select the media type using the
or
keys. There are five preset media types to choose from:
●Paper
●Glossy
●Matte
●Banner
●BLT_B (Backlit)
b.Press the OK key to confirm.
NOTE If you wish to select a media type that is currently not available, then you will need to create a new media type.
c.If required, select the NEW MEDIA ENTRY option using the
or
key and press the OK key (Refer to Manage media types).
Press the Cancel key to return to the SELECT MEDIA menu.
11.Prepare two tension bars, each with a length of half the media width. Remove the flanges from the tension bars.
How do I use dual media rolls?
ENWW | Install dual media rolls on the main scroller | 113 |
