Connecting the handset to the HP FAX-750

Your HP FAX-700/750 has three line connections. Use the connection labeled LINE to connect to the telephone wall jack. Use the connections labeled TEL to connect a telephone or answering machine.

ek 14

ek 37

Plug the small end of the coiled phone cord into the back of the

handset.

Lift the left side of the fax and snap the telephone base into the slots in the bottom edge of the fax machine. To remove the telephone base, press the tabs that snap into the bottom edge of the fax machine together.

Plug the other end of the coiled phone cord into one of the connections marked TEL.

When you have connected the handset, turn to Managing incoming calls and set the Reception mode.

Topics of Interest

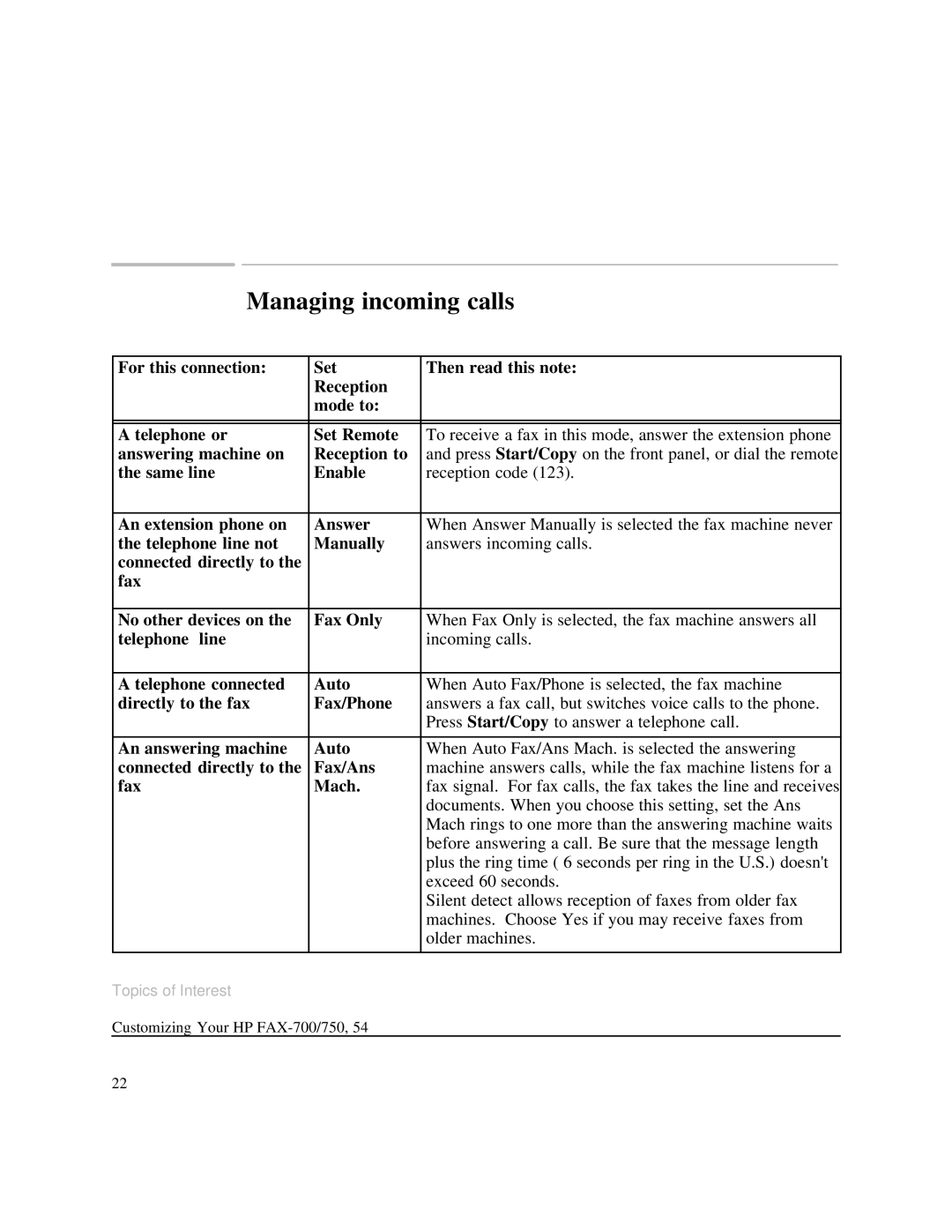

Managing incoming calls, 22
