SECTION 6—OPERATING INSTRUCTIONS

Warning & Alarm Screens

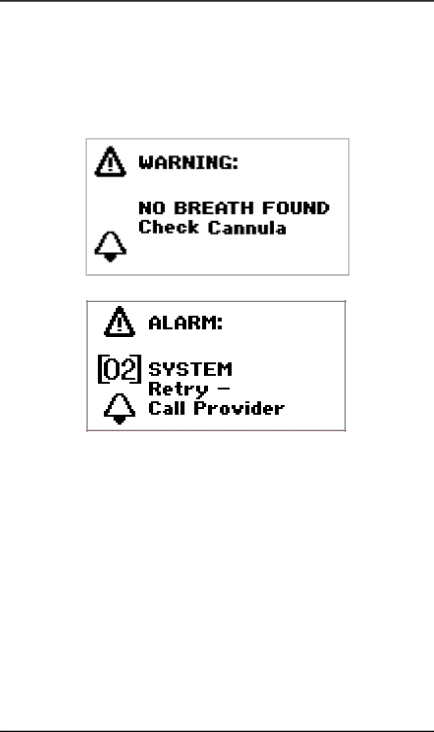

On occasion, even when operating normally, the internal monitoring of the transportable oxygen concentrator will need to provide a warning, or alarm, message to the user. These messages are usually shown in conjunction with the audible alarm and Indicator LEDs. Samples of both the Warning and the Alarm screens are shown below.

Typical Warning Screen

Typical Alarm Screen

FIGURE 6.8 Warning & Alarm Screens

NOTE: For a detailed explanation and description of the transportable oxygen concentrator warnings and alarms please see Warnings and Alarms on page 37 and/or Troubleshooting on page 35.
