OfficeServ Link Version 2.1 User GuideInstallation

--------------------------------------------------------------------------------------------------------------------------------------------------------------------

Configuration Environment

The following figure shows the connections between the Link-installed computer and the DCS Key telephone system, and relations among the CTI applications-installed computers.

95/98/ME/NT/2000/XP



NT / 2000 / XP



Any PC

OfficeServ Call

OfficeServ Operator

OpenTSP



3rd Party



CTI S/W















TCP / IP





ARC





OfficeServ

SIO, TCP/IP





Link

Agent









OpenTSP



OfficeServ Link Installed Computer











EasySet







Server



OfficeServ





(Web Server)





ACD Server





ARC Server













DCS Key Telephony System









or



Open TSP





OfficeServ System

Other

Installed Computer







TAPi S/W











EasySet

EasySet

ICC ICC ICC ACD





Client

Client

Agent AgentAgent





Agent



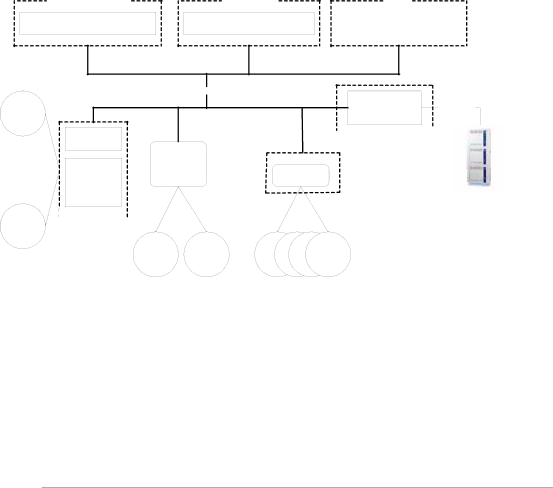

<< OfficeServ Link, Call, Operator, EasySet, OpenTSP Driver, ACD, 3rd Party S/W Configuration Diagram >>

Figure 2.1 Typical configuration diagram

As shown in the figure above, the Link supports SIO connections (SIM, Direct Serial Connection) to the Telephone system, and the LAN connections of TCP/IP protocol. The connections depend on the type of telephone system. Contact your Authorised Samsung Reseller as to which connections your system supports.

In addition, the Link receives and manages a connection request from each user’s computer through TCP/IP LAN, and transmits and receives messages generated between the telephone system and the CTI applications that are running on users’ computers.

Note

Link connections for each DCS Key telephone system



iDCS 500 / 100 / OfficeServ: Supports Serial / LAN connections.



Note Users CTI applications connected to the Link shall be based on Tapi 2.x. All CTI











Application that want to connect the DCS Key telephone system have to use the



OpenTSP Driver. The OpenTSP Driver is the Tapi 2.x compatible Telephony Service Provider for



3rd party Tapi compatible CTI Software.
