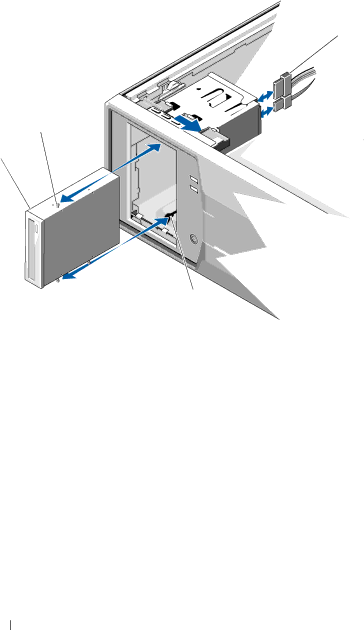

Figure 3-7. Removing and Installing an Optical Drive (SATA Connection)

1

5

2

4





3



1

power/data cable

2

drive release latch

3

drive bay screw slots

4

optical drive

5

optical drive shoulder screws (3)





6If you are installing another drive in the bay, see "Installing an Optical or Tape Drive" on page 55.

7If the drive is being permanently removed, install an insert on the front bezel. See "Installing Front-Bezel Insert" on page 50.

8Replace the front bezel. See "Installing the Front Bezel" on page 48.

9Close the system. See "Closing the System" on page 46.

54

Installing System Components
