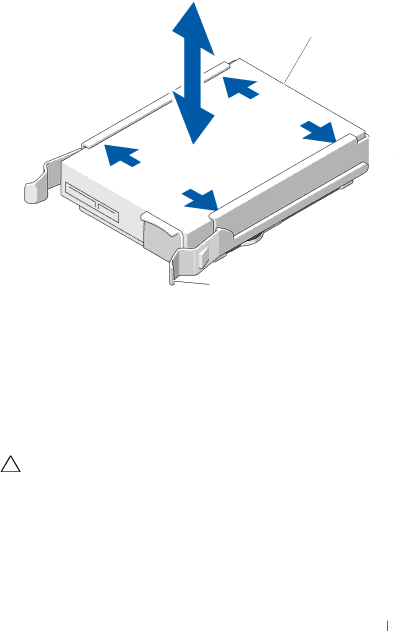

Figure 3-11. Removing and Installing a Hard Drive From a Hard-Drive Bracket

1

2





3



1

hard drive

2

hard drive bracket

3

blue tabs (2)





Installing a 3.5-Inch Hard Drive Into a Hard-Drive Bracket

Push out the edges of the bracket and snap the hard-drive bracket on to the hard drive. See Figure 3-11.

Removing a 2.5-Inch Hard Drive (When Available)

CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

1Turn off the system and attached peripherals, and disconnect the system from the electrical outlet and from the peripherals.
