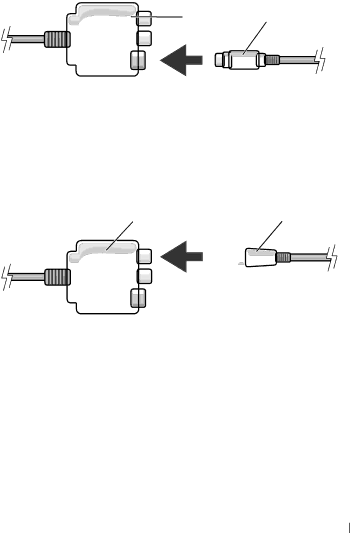

1Turn off the computer and the TV and/or the audio device that you want to connect.

2Connect the composite video adapter to the S-video TV-out connector on your computer.

3Plug one end of the S-video cable into the S-video output connector on the composite video adapter.

1

2

1

composite video adapter

2

S-video cable

4Plug the other end of the S-video cable into the S-video input connector on the TV.

5Plug one end of the S/PDIF digital audio cable into the digital audio connector on the composite video adapter cable.

1	2

1

composite video adapter

2

S/PDIF digital audio cable

6Plug the other end of the S/PDIF digital audio cable into the audio input connector on your TV or audio device.

7Turn on the TV, turn on any audio device that you connected (if applicable), and then turn on the computer.

8See "Enabling the Display Settings for a TV" on page 75 to ensure that the computer recognizes and works properly with the TV.
