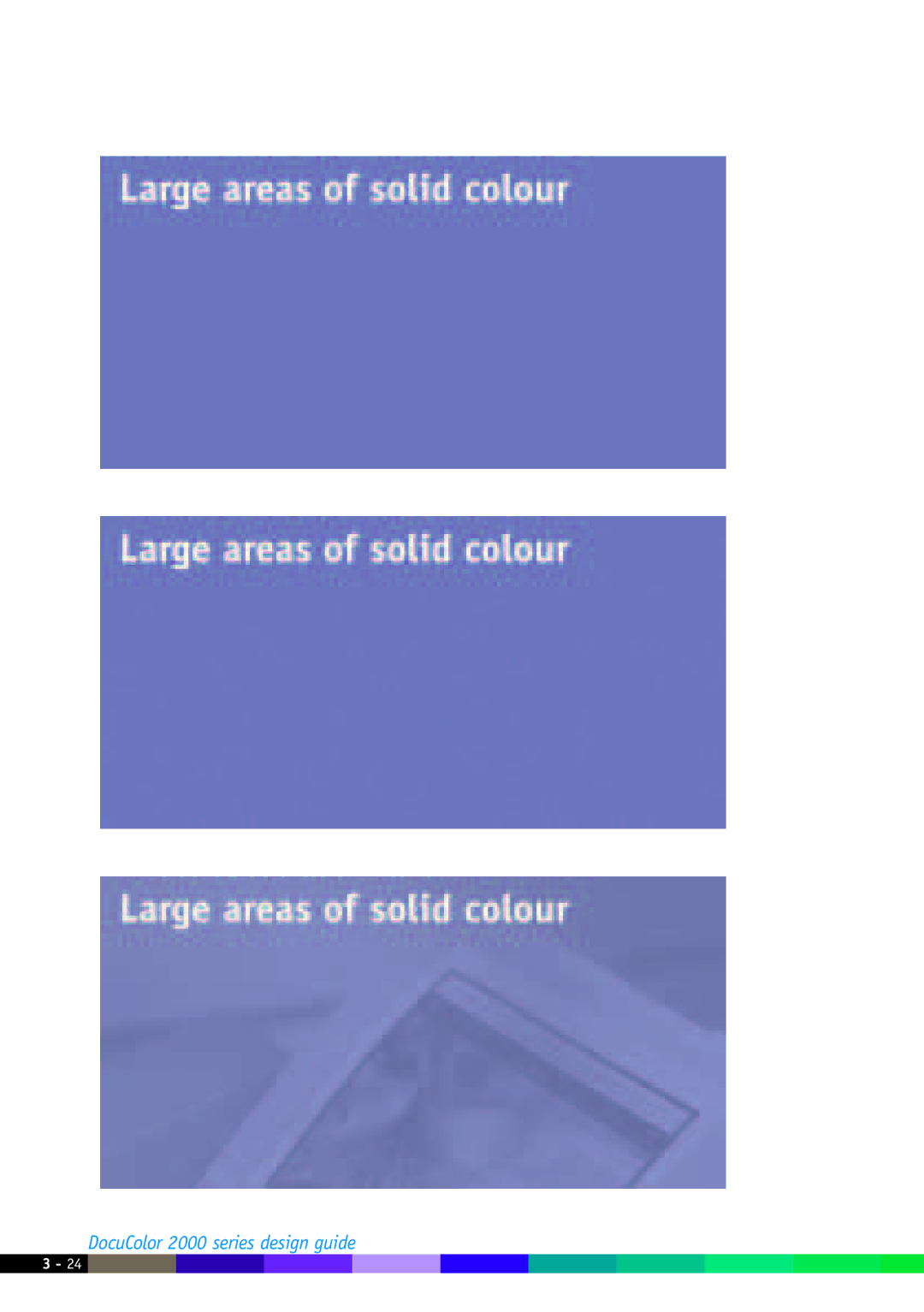

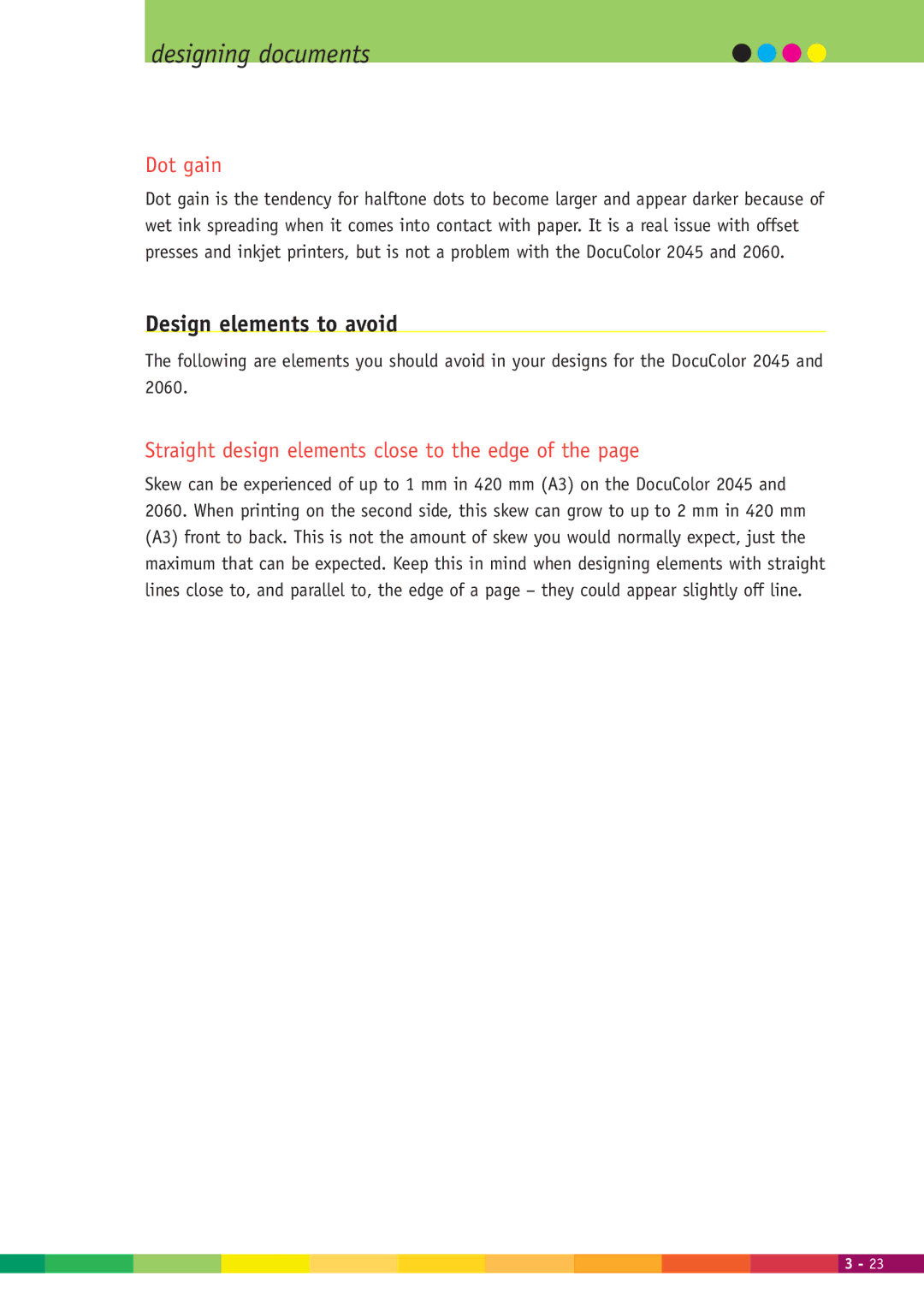

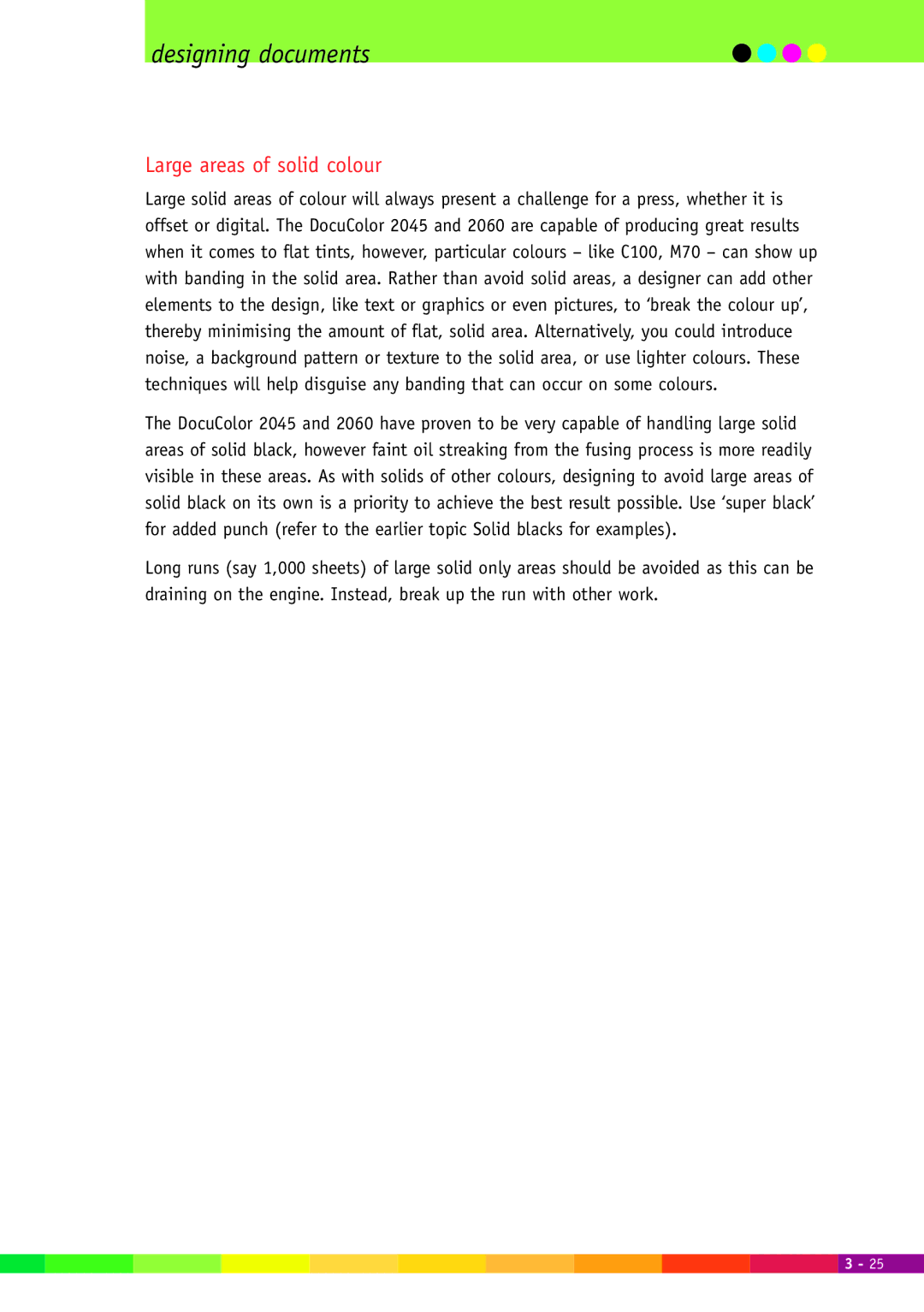

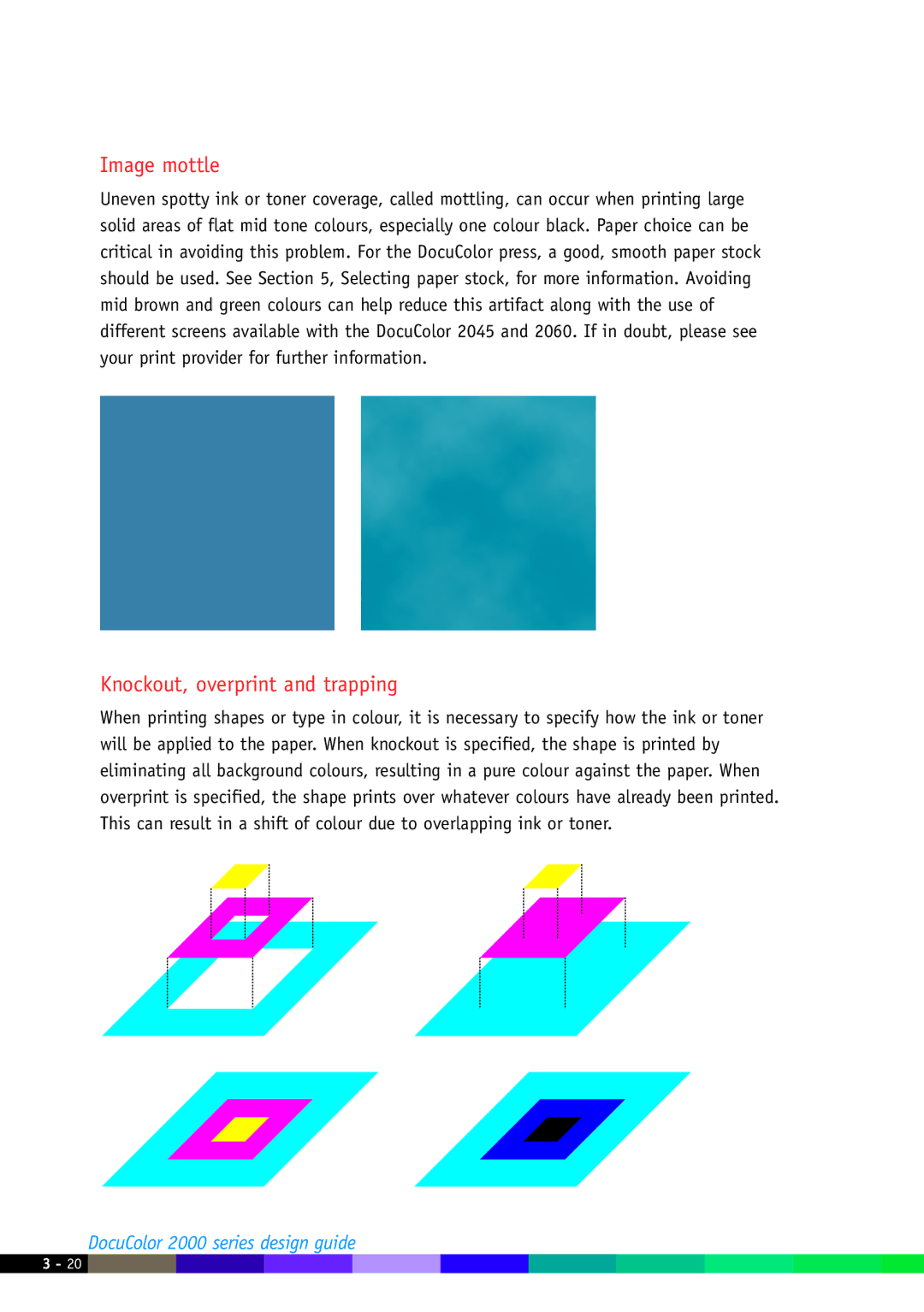

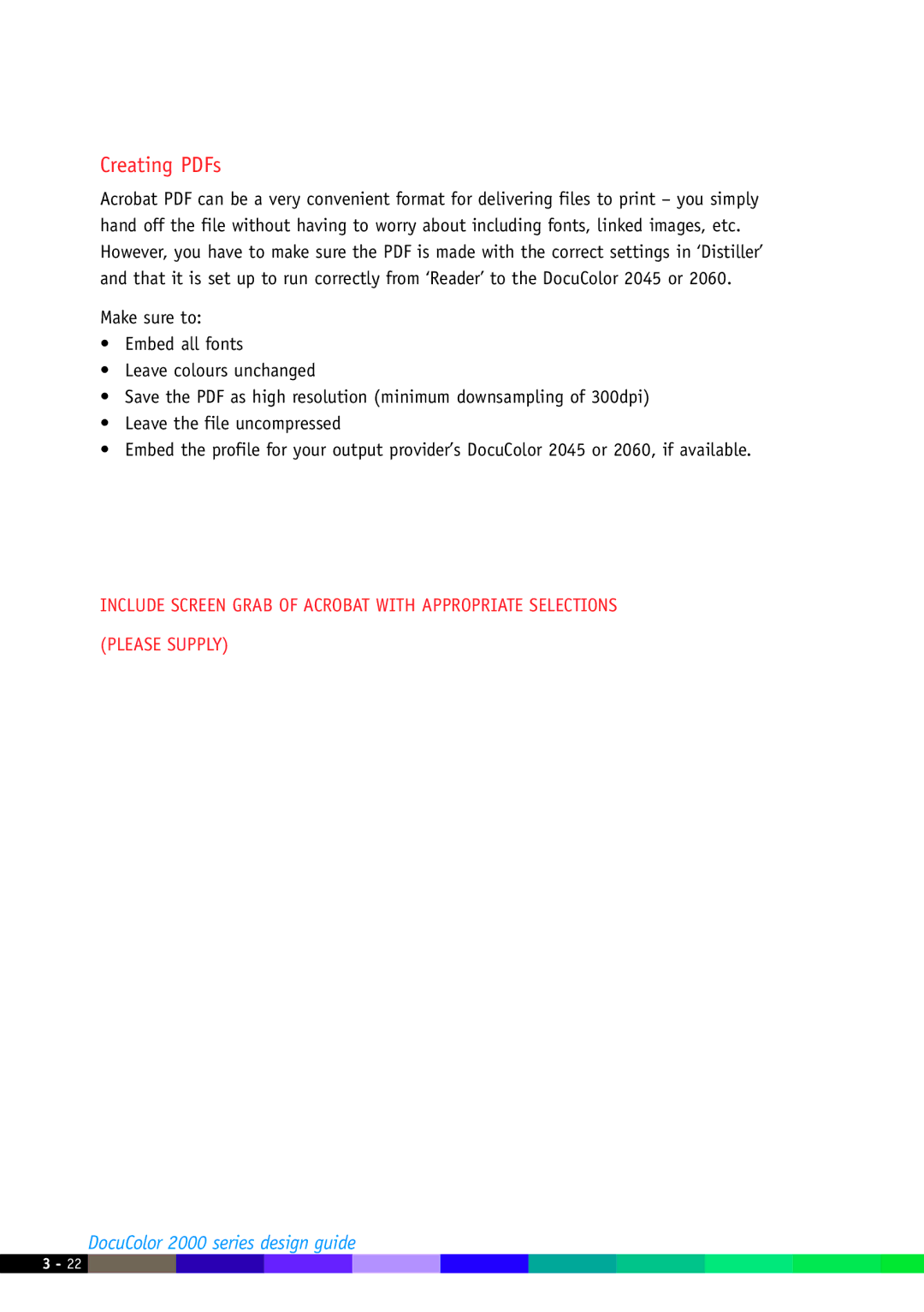

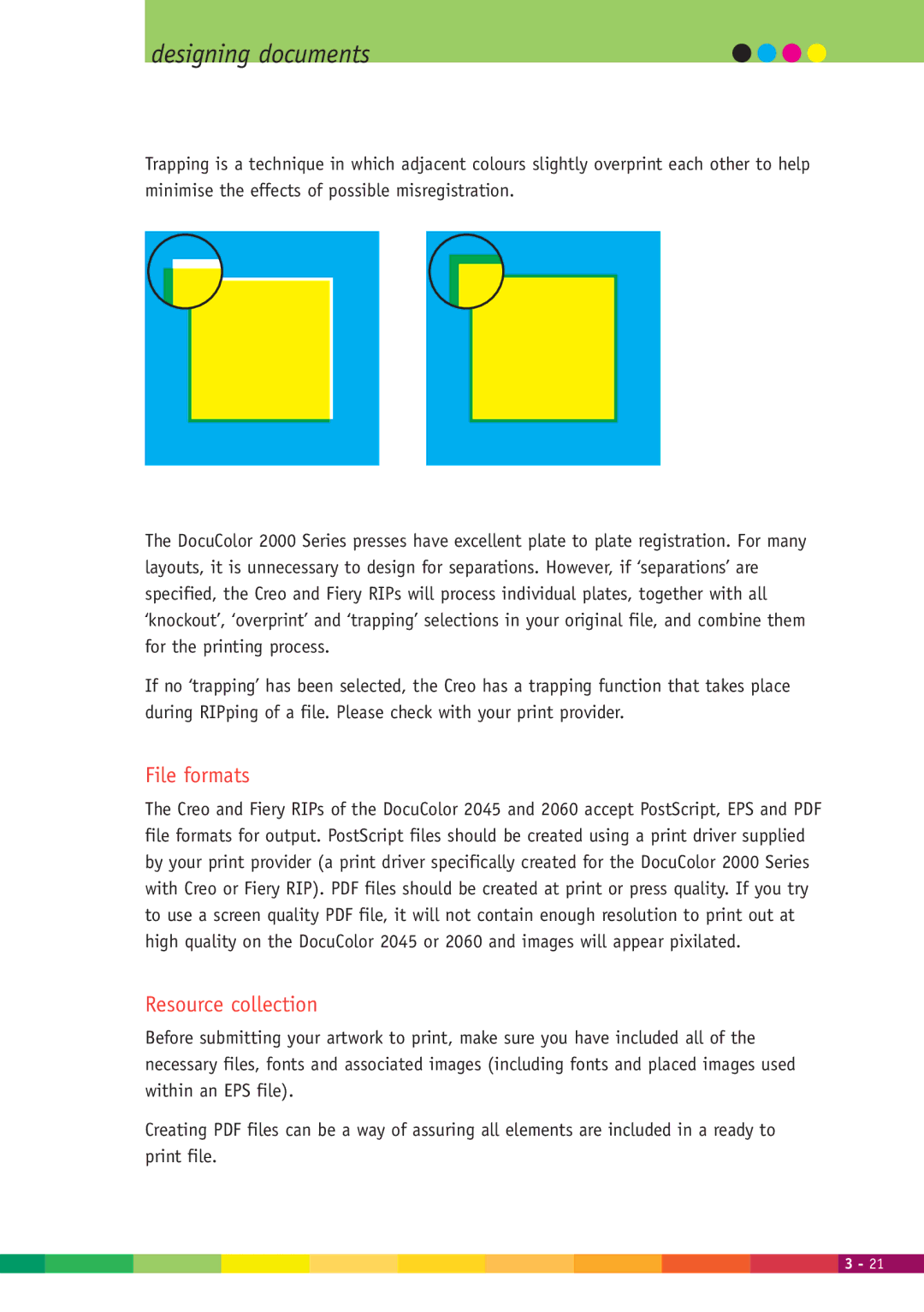

Creating PDFs

Acrobat PDF can be a very convenient format for delivering files to print – you simply hand off the file without having to worry about including fonts, linked images, etc. However, you have to make sure the PDF is made with the correct settings in ‘Distiller’ and that it is set up to run correctly from ‘Reader’ to the DocuColor 2045 or 2060.

Make sure to:

•Embed all fonts

•Leave colours unchanged

•Save the PDF as high resolution (minimum downsampling of 300dpi)

•Leave the file uncompressed

•Embed the profile for your output provider’s DocuColor 2045 or 2060, if available.

INCLUDE SCREEN GRAB OF ACROBAT WITH APPROPRIATE SELECTIONS

(PLEASE SUPPLY)
