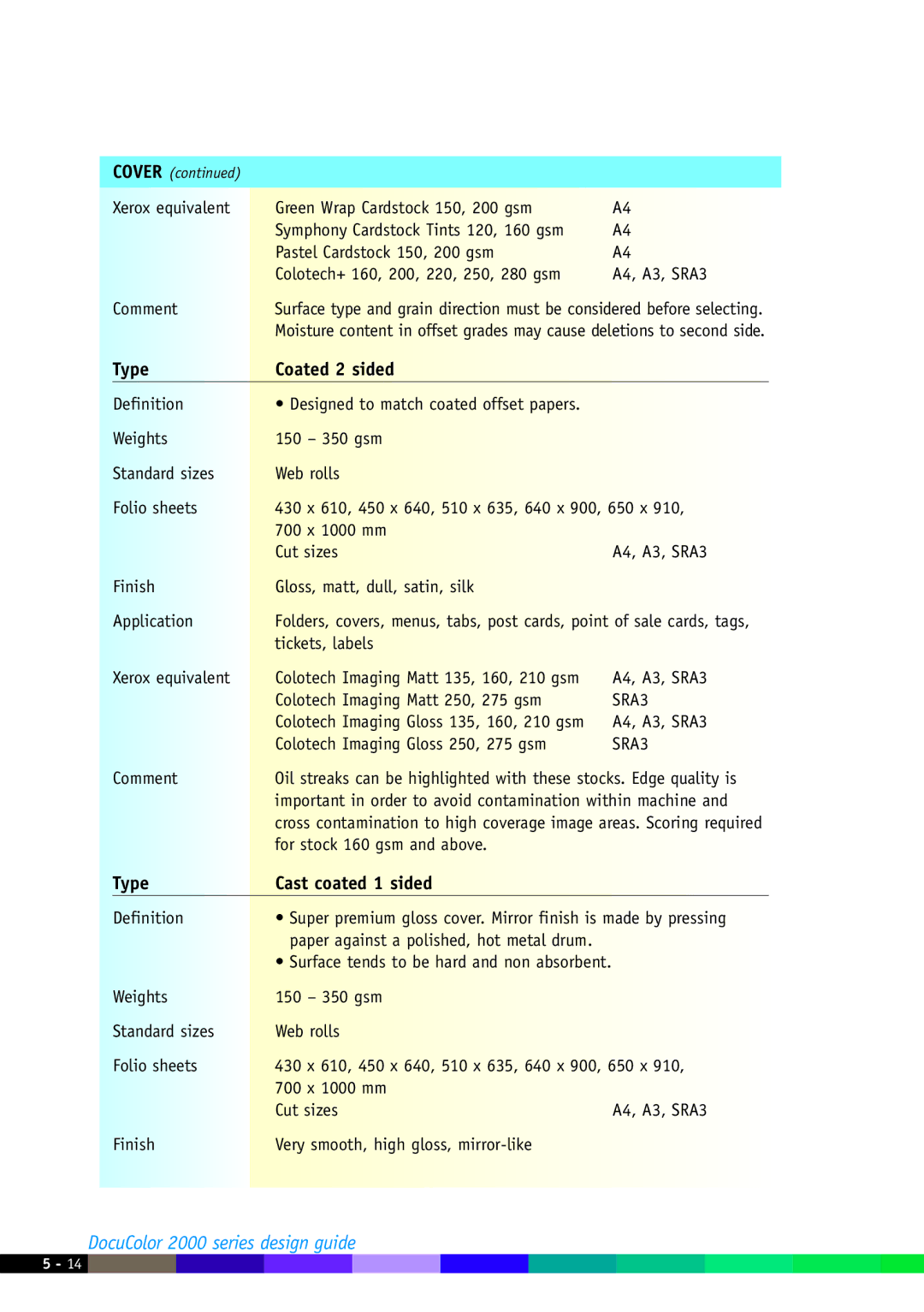

COVER (continued)
Xerox equivalent | Green Wrap Cardstock 150, 200 gsm | A4 |
| Symphony Cardstock Tints 120, 160 gsm | A4 |
| Pastel Cardstock 150, 200 gsm | A4 |
| Colotech+ 160, 200, 220, 250, 280 gsm | A4, A3, SRA3 |
Comment | Surface type and grain direction must be considered before selecting. | |
| Moisture content in offset grades may cause deletions to second side. | |
Type | Coated 2 sided |
|
Definition | • Designed to match coated offset papers. |
|
Weights | 150 – 350 gsm |
|
Standard sizes | Web rolls |
|
Folio sheets | 430 x 610, 450 x 640, 510 x 635, 640 x 900, 650 x 910, | |
| 700 x 1000 mm |
|
| Cut sizes | A4, A3, SRA3 |
Finish | Gloss, matt, dull, satin, silk |
|
Application | Folders, covers, menus, tabs, post cards, point of sale cards, tags, | |
| tickets, labels |
|
Xerox equivalent | Colotech Imaging Matt 135, 160, 210 gsm | A4, A3, SRA3 |
| Colotech Imaging Matt 250, 275 gsm | SRA3 |
| Colotech Imaging Gloss 135, 160, 210 gsm | A4, A3, SRA3 |
| Colotech Imaging Gloss 250, 275 gsm | SRA3 |
Comment | Oil streaks can be highlighted with these stocks. Edge quality is | |
| important in order to avoid contamination within machine and | |
| cross contamination to high coverage image areas. Scoring required | |
| for stock 160 gsm and above. |
|
Type | Cast coated 1 sided |
|
Definition | • Super premium gloss cover. Mirror finish is made by pressing | |
| paper against a polished, hot metal drum. |
|
| • Surface tends to be hard and non absorbent. |
|
Weights | 150 – 350 gsm |
|
Standard sizes | Web rolls |
|
Folio sheets | 430 x 610, 450 x 640, 510 x 635, 640 x 900, 650 x 910, | |
| 700 x 1000 mm |
|
| Cut sizes | A4, A3, SRA3 |
Finish | Very smooth, high gloss, |
|
DocuColor 2000 series design guide
5- 14
