16CHAPTER 2: VCX V7000 MANAGERS TELEPHONE — MODEL 3103

Telephone Buttons

Figure 1 shows the buttons and controls on the VCX Model 3103

and Controls

Manager’s Telephone.



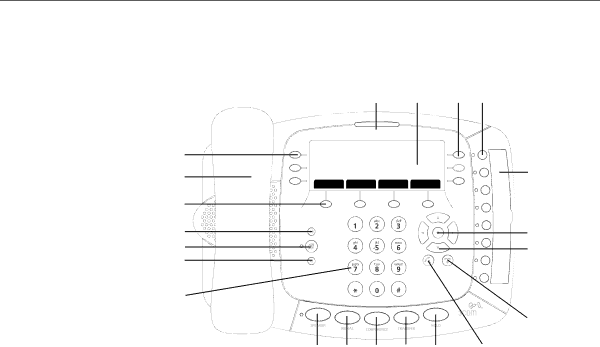

Figure 1 VCX Model 3103 Manager’s Telephone

















-ESSAGES

$IRECTORY

#ALL ,OGS

&EATURES























1Message Waiting Indicator (MWI) — When lit, indicates that you have at least one unreviewed message (voice, e-mail, or fax) in your mailbox. This indicator also flashes when your telephone rings.

2Display Panel — Displays telephone status messages, Caller ID information (if enabled), and the number of new messages (voice, e-mail, and fax) that you have in your mailbox. You can also use the display panel to access the following options:

Messages — Allows you to access messages stored in your mailbox.

Directory — Displays a directory of the people in your organization. You can search the directory, select a user, and make a call.

Call Logs — Displays a list of received, missed, and placed calls. You can select and return a call, or clear a call from the log.

Features — Provides access to features such as call forwarding, call park, password change, and hunt group login. See Feature Options for more information.

You can manage items in the Display Panel with the buttons to the right (see 3), the left (see 21), and below (see 19) the panel.
