Water Supply Requirements

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

IMPORTANT:

■If you turn the refrigerator on before the water line is connected, turn the ice maker OFF.

■All installations must meet local plumbing code requirements.

■Use copper tubing and check for leaks. Install copper tubing only in areas where the household temperatures will remain above freezing.

TOOLS NEEDED: Flat-blade screwdriver, ⁷⁄₁₆" and ¹⁄₂" open-end wrenches or two adjustable wrenches, ¹⁄₄" nut driver and drill bit, cordless drill.

NOTE: Your refrigerator dealer has a kit available with a ¹⁄₄"

(6.35 mm) saddle-type shutoff valve, a union, and copper tubing. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. Do not use a piercing-type or ³⁄₁₆"

(4.76 mm) saddle valve which reduces water flow and clogs more easily.

Water Pressure

A cold water supply with water pressure of between 30 and

120 psi (207 and 827 kPa) is required to operate ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 120 psi

(207 and 827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

If the water pressure to the reverse osmosis system is less than

40 to 60 psi (276 to 414 kPa):

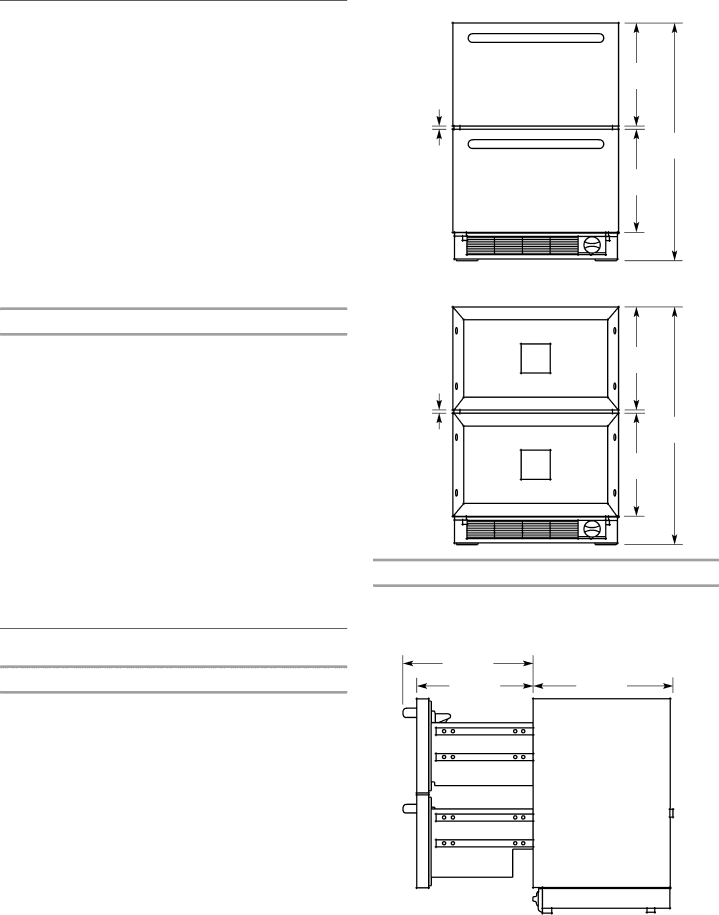

Style 1: Architect® Series

³⁄₈"

(1.0 cm)

Style 2: Overlay

³⁄₈"

(1.0 cm)

14⁷⁄₈"

(37.8 cm)

34¹⁄₈"

(86.7 cm)

14⁷⁄₈"

(37.8 cm)

14⁷⁄₈"

(37.8 cm)

34¹⁄₈"

(86.7 cm)

14⁷⁄₈"

(37.8 cm)

■Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.

■Allow the storage tank on the reverse osmosis system to refill after heavy usage.

If you have questions about your water pressure, call a licensed, qualified plumber.

Product Dimensions

Styles 1 and 2: Architect® Series and Overlay

■Height dimensions are shown with the leveling legs extended to ¹⁄₄" (6.35 mm) below the refrigerator drawers.

■When leveling legs are fully extended to 1" (25 mm) below the refrigerator drawers, add ³⁄₄" (19.05 mm) to the height dimensions.

■The power cord is 60" (152.4 cm) long.

Drawer Opening Dimensions

Dimensions vary based on model, as shown.

Style 1: Architect® Series

21"
(53.3 cm)
18⁹⁄₁₆"	22¹⁄₂"
(47.2 cm)	(57.2 cm)
