BAKE AND BROIL BURNERS TO LP/PROPANE GAS
To convert Bake Burner Orifice (upper and lower):
Remove both oven doors and follow these steps: (See figures 8A & 8B).
a.Remove oven bottom by taking out two screws at front. (8A)
b.Remove oven baffle by taking off wing nuts. (8B)
c.Remove front and rear screws from oven burner and remove burner. (8B) Be careful not to damage ignitor.
d.Remove the cover over the orifice by taking out one screw. (8B)
e.Use a 1/2 (12.7 mm) socket wrench to turn the orifice hood clockwise (down) approximately 2 to 2 1/2 turns until it bottoms out on the pin.
CAUTION: Use care to not over tighten.
f.
To convert Broil Burner Orifice: (Figure 8C)
Located in right rear corner of top oven only, use a 1/2 (12.7 mm) open end wrench to turn the orifice hood clockwise (down) approximately 2 to 2 1/2 turns until it bottoms out on the pin.
CAUTION: Use care to not over tighten.
SHIELD
BURNER
ORIFICE
HOOD
IGNITOR
Figure 8C
Broil Burner Orifice

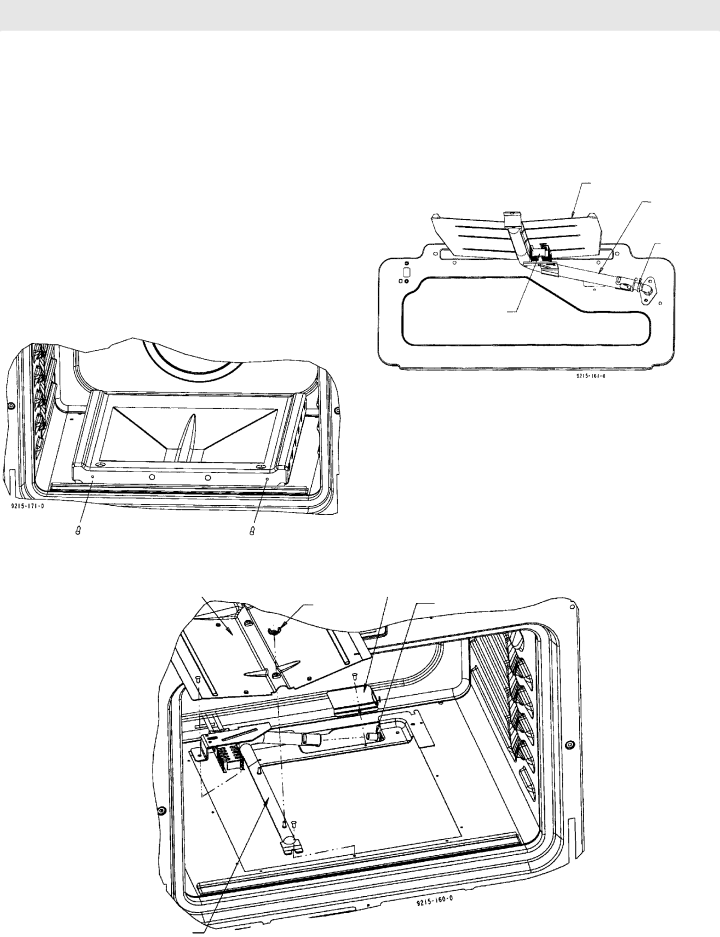

Figure 8A
Bake Burner Orifice
BAFFLECOVER
WING NUT | ORIFICE HOOD |
BURNER | Figure 8B |
|
