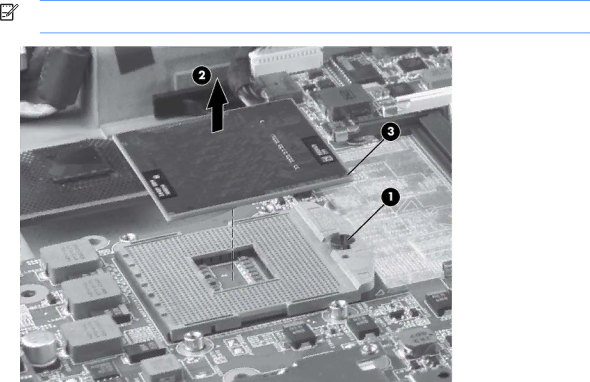

Remove the processor:

1.Position the computer right-side up, with the front toward you.

2.Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise until you hear a click.

3.Lift the processor (2) straight up and remove it.

NOTE: The gold triangle (3) on the processor must be aligned with the triangle embossed on the processor slot when you install the processor.

Reverse this procedure to install the processor.
