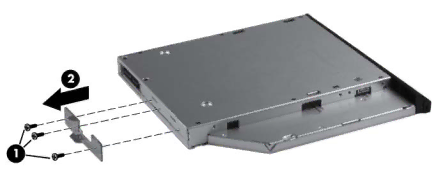

5.If it is necessary to replace the optical drive bracket, position the optical drive with the rear toward you.

6.Remove the three Phillips M2.0×3.0 screws (1) that secure the optical drive bracket to the optical drive.

7.Remove the optical drive bracket (2).

Reverse this procedure to install an optical drive.

66 Chapter 4 Removal and replacement procedures
