Lenovo M73 manual Installing the WiFi card module, Connecting the WiFi antenna cables

Models: M73

1 156

Page 84

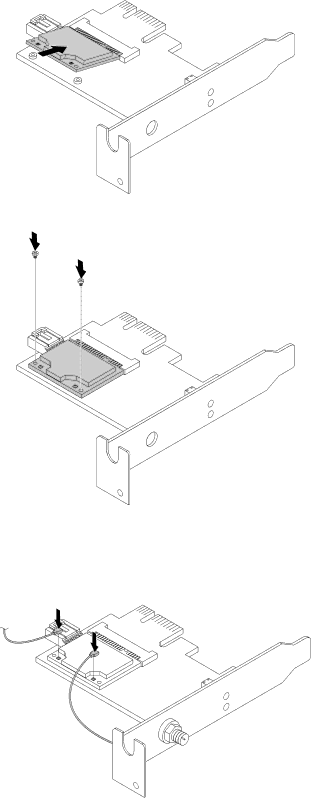

1.Insert the WiFi card module into the mini PCI Express slot, and then install the two screws to secure the WiFi card module to the WiFi adapter card.

Figure 56. Installing the WiFi card module

2. Connect the front antenna cable and rear antenna cable to the WiFi card module.

Figure 57. Connecting the WiFi antenna cables

72ThinkCentre M73 User Guide

Page 84

Image 84

Lenovo manual Installing the WiFi card module, Connecting the WiFi antenna cables, ThinkCentre M73 User Guide
