Hot-plug SAS or SATA hard drives

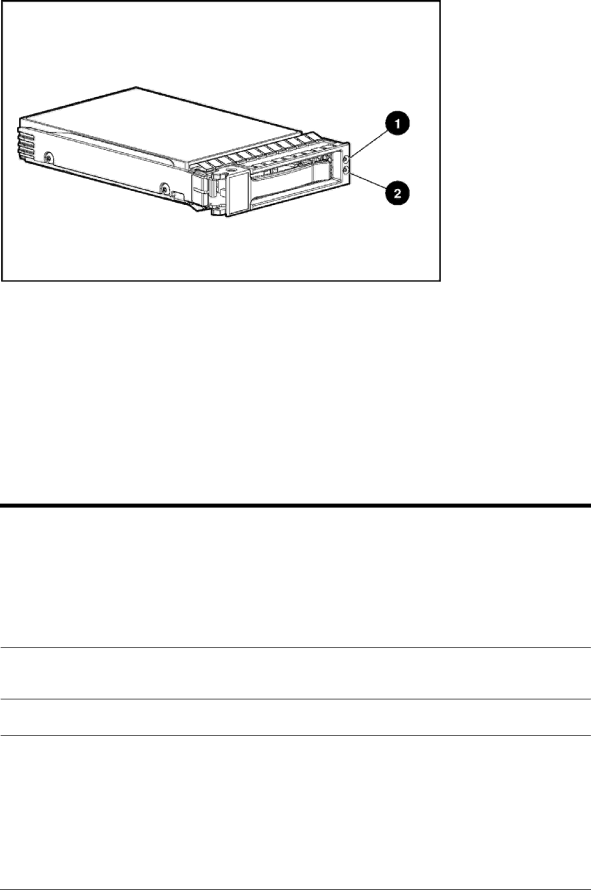

Figure 57 Hot-plug SAS or SATA hard drive LEDs
Table 16 | ||
|
|
|
Item | Description | Status |
|
|
|
1 | Fault/UID status | Amber = Drive failure |
|
| Flashing Amber = |
|
| Blue = Unit identification is active |
|
| Off = No |
|
|
|
2 | Online/Activity Status | Green = Drive activity |
|
| Flashing green = High activity on the drive or the drive is being configured as |
|
| part of an array |
|
| Off = No drive activity |
|
|
|
Table 17 Hot-plug SAS or SATA hard drive LED combinations
Online/Activity LED (green) | Fault/UID LED (amber/blue) | Interpretation |
|
|
|
On, off, or flashing | Alternating amber and blue | The drive has failed, or a predictive |
|
| failure alert has been received for this |
|
| drive. It also has been selected by a |
|
| management application. |
|
|
|
On, off, or flashing | Steadily blue | The drive is operating normally, and it |
|
| has been selected by a management |
|
| application. |
On | Amber, flashing regularly (1 Hz) |
A predictive failure alert has been received for this drive.
Replace the drive as soon as possible.
On | Off | The drive is online, but it is not active |
|
| currently. |
Flashing regularly | Amber, flashing regularly (1 Hz) |
(1 Hz) |
|
Do not remove the drive. Removing a drive may terminate the current operation and cause data loss.
The drive is part of an array that is undergoing capacity expansion or stripe migration, but a predictive failure alert has been received for this drive. To minimize the risk of data loss, do not replace the drive until the expansion or migration is complete.
