Access Authorization Level, Operating Environment

Operations (Step 5 Operating Using a Web Browser)

In addition to the controller software supplied, web browsers can also be used to view still/motion images as well as to perform various settings.

5-2 Access Authorization Level

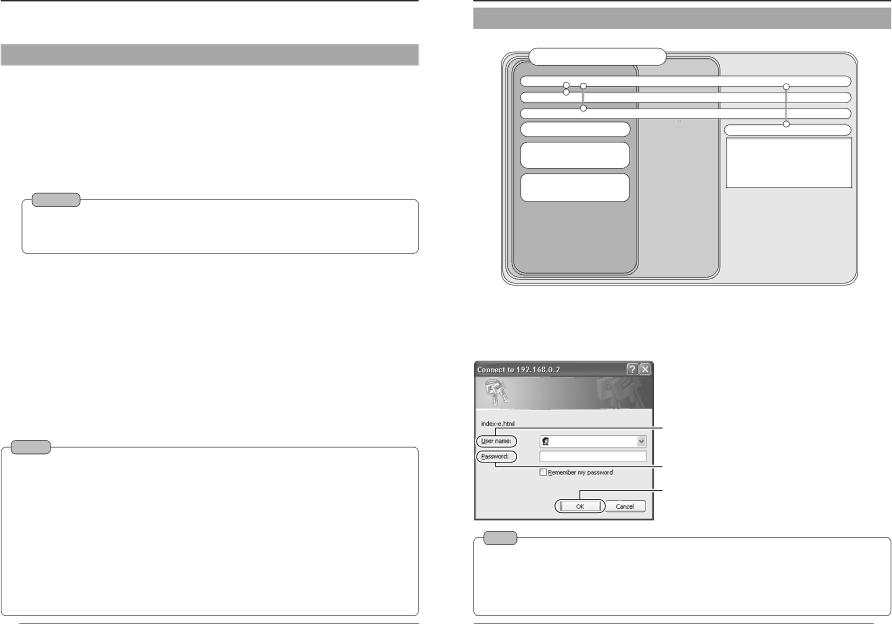

The configuration of URLs (web pages) in VN-C205 is illustrated as follows.

5-1 Operating Environment

The following environment will be required to view/operate VN-C205 using a web browser.

The PC in use shall also meet requirements on the operation environment stated in this manual (☞ Page 8).

PCs installed with the following web browsers

●Internet Explorer 5.x or 6.x.

●For CPU performance, required memory space and other values, please refer to the recommended values by the respective web browser in use.

In order to enable smooth display of motion images on a large screen, it will be necessary to ensure adequate allowance as compared with the recommended values by web browsers. In addition, images of the installed camera cannot be properly displayed using 256 color modes.

Caution

Operation using the web browser requires an environment that enables proper running of Java. Please refer to our web site for details. http://www.jvc-victor.co.jp/english/pro/vnetworks/index-e.html

LAN Environment

Access Authorization Level

<< User >>		<< Operator >>
Top page	(index-e.html)
Still image page	(still-e.html)
Live image page (java-e.html)
Still image URL	(still.jpg)

Serverpush moving image URL

(push.jpg)

Java moving image URL (mjpeg.class)

<<Administrator >>

Settings ( java config-e. html )

Setting page

View settings(view config-e. html ) Alarm settings(alarm-e. html ) FTP settings(ftp-e. html )

Other settings(config-e. html )

●VN-C205 functions as a web server that makes use of a HTTP protocol.

Access linking by host name will be possible as long as the environment allows use of a DNS (Domain Name System).

●It is possible to establish a 1-to-1 connection between the PC and VN-C205 using a crossover cable. (Although rare, the use of crossover cables may not be possible with some LAN boards. Be sure to check before using.)

Notes

Web Page Images

Web page screens in this manual are web page data inside VN-C205 (including images shot using the installed camera) which are displayed using the web page browsing/display function of the browser.

As such, the format of web pages and fonts displayed may vary according to the type of browser and settings.

In the event that items on the screen are not fully displayed, hence causing problems during use, display all items such as by resizing the window.

Description in this manual is based on the web page browsing/display screen of Internet Explorer.

Password

Upon changing a password, the password confirmation screen may appear, which requires you to enter the new password twice. When this screen appears, enter the same password twice.

Front Page: http://******/index-e.html ("******" represents the URL of VN-C205) This page provides links to the various web pages of VN-C205.

Authentication of Access Authorization

When there are authenticated passwords, a message requesting entry of user name and password (acess authorization authentication) will appear.

1 User name is not used.

2 Enter a password among the 3 different levels that have been set.

3Click .

Note

It is recommended that you register a URL (Uniform Resource Locator).

To speed up display of VN-C205 web pages using your web browser, register the URL information during the access test using the set IP address or DNS host name.

This is represented by [Favorites] in Internet Explorer. To register, use the [Add to Favorites] item in the operation menu of the web browser when a VN-C205 web page is displayed.
