General configuration steps

Example FortiGate Voice branch office configuration

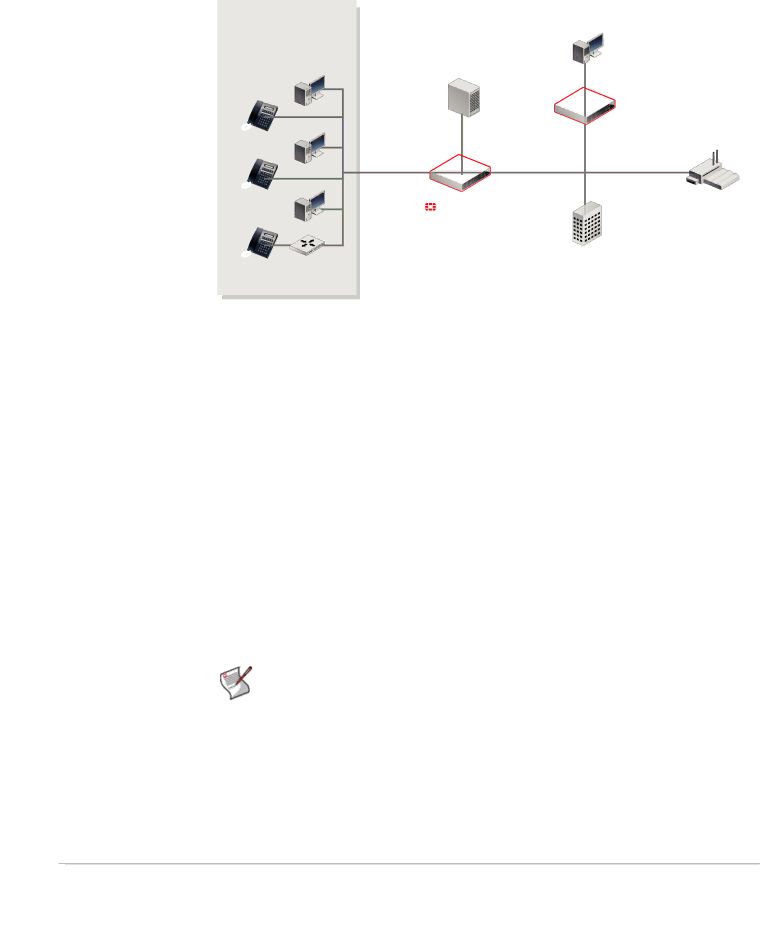

Figure 3: Example Branch Office network configuration

Branch Office











Remote Users

Internal network





















with FortiFones or

PCs with SIP soft phones





















SIP soft phones

and FortiFones





















Extension range

Subnet: 172.20.120.0





















6000 - 6999

Extension Range 6000 - 6999



































Remote

PC





PSTN





FortiGate unit









in NAT mode





a/b - wire







external









192.168.40.10

FortiFone













fxo1



















PC

SIP



SIP Trunking



SIP Trunking



LAN

internal

wan1

WAN

Internet

WAN





FortiFone



172.20.120.10

192.168.10.10



Head Office



FortiGate Voice-80C













IP: 192.168.30.10

PC











Extention Range











2000 - 2999













FortiFone

NAT device

VoIP Provider

IP: 192.168.20.10



behind a NAT





device





This section describes:

General configuration steps

Connecting the FortiGate Voice unit

Configuring basic FortiGate Voice network and UTM settings

Configuring network settings for the devices on the Internal network

Configuring the FortiGate Voice PSTN and PBX settings

Configuring the FortiFones on the internal network

Adding extensions and configuring FortiFones for users behind a NAT device

General configuration steps

1Connect the FortiGate Voice unit to the Internet, the internal network and the PSTN.

2Configure FortiGate Voice unit network and UTM settings.

The network configuration includes enabling the SIP Traffic option on the internal and wan1 interfaces. You must enable SIP traffic on these interfaces to accept and process SIP calls. No other special network configuration, firewall policies, or routing is required for the FortiGate Voice to accept and process SIP calls.

Note: You do not have to add SIP firewall policies to enable SIP traffic for the FortiGate Voice unit to function as a PBX. Also, with PBX functionality enabled, you cannot apply FortiGate SIP application control features to SIP traffic received by FortiGate Voice interfaces for which you have enabled the SIP Traffic option.

This example also describes how to configure the FortiGate Voice as a DHCP server and DNS server for the branch office internal network. As a DHCP server the FortiGate Voice can supply network configuration settings for the PCs and FortiFones on the internal network.

3Configure network settings for the PCs on the Internal network.

4Configuring the FortiGate Voice PSTN and PBX settings.
