Channel spanning is supported for internal links (HiperSockets, and Internal Coupling (IC) links), and for some external links (FICON Express channels, OSA-Express, and coupling links). For a complete list of supported spanned channels, see Table 3-8, “Spanned and shared channels” on page 91.

Note: Spanning of ESCON channels, FICON converter (FCV) channels and receiver coupling links are not supported.

In Figure 4-4, CHPID 04 is spanned to LCSS0 and LCSS1. Since it is not an external channel link, there is no PCHID assigned. CHPID 06 is an external spanned channel and has a PCHID assigned.

Partition Partition



Partition Partition Partition

Partition

Partition



Partition



1



2



14

15

16

17

18



30











LCSS0









LCSS1







MIF-1 MIF-2

MIF-F







MIF-1 MIF-2

MIF-3

MIF-F

CHPID CHPID CHPID

CHPID

CHPID

CHPID

CHPID

CHPID CHPID

CHPID

CHPID CHPID

00

01

02

03

FF

00

01

05

22

FF

Share

04



06

Share



















PCHID PCHID PCHID PCHID

PCHID

SPAN

SPAN

PCHID PCHID PCHID PCHID PCHID

10B

10C

10D

20E

20A







145

146

147

158

159













PCHID























120











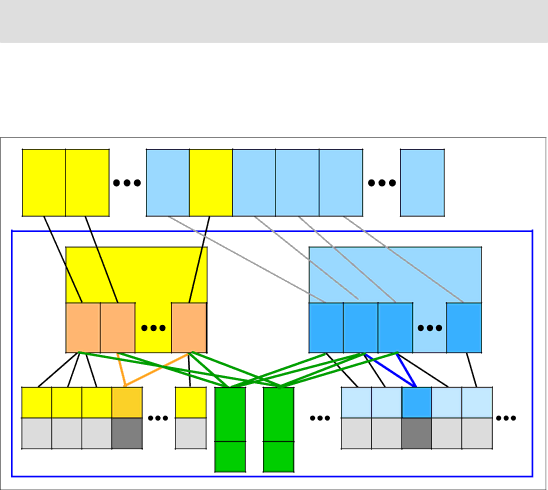

Figure 4-4 z990 CSS - two Logical Channel Subsystems with channel spanning

4.2 LCSS configuration management

Tools are provided to maintain and optimize the I/O configuration of a z990.

IBM Configurator for e-business (e-Config)

The e-Config tool is available to your IBM representative. It is used to configure new configurations or upgrades of existing configuration, and maintains installed features of those configurations.

Hardware Configuration Dialog (HCD)

HCD supplies an interactive dialog to generate your I/O definition file (IODF) and subsequently your Input/Output Configuration Data Set (IOCDS). It is strongly recommended that HCDor HCM be used to generate your I/O configuration, as opposed to writing your own IOCP. The validation checking that HCD performs as you enter data helps eliminate errors before you implement your I/O configuration.

Chapter 4. Channel Subsystem 115
