Ethernet LAN

Bridge

Token-Ring LAN

SE

SE

SE

SE

SE

SE

G5-G6 Series

zSeries 990

zSeries 900

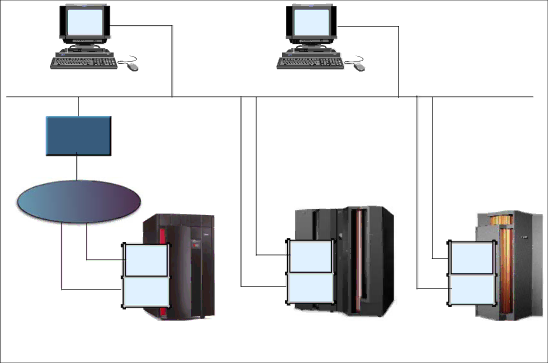

Figure A-6 Ethernet only - one-path wiring scenario with additional connections

Ethernet only - two-path wiring scenario

Ethernet only - two-path wiring scenario (not applicable to systems with FC 0075. This scenario is included for those who may be reusing a previous Hardware Management Console.)

This Ethernet only wiring scenario, shown in Figure A-7,is also intended for enterprises that currently have Ethernet wiring and do not want token ring wiring introduced into their environment. The two-path scenario is included to provide the possibility of a second, separate and redundant path to the Support Elements.

This wiring scenario requires that FC 3063 (a second Ethernet) be specified with the Support Elements, and that the token ring feature not be ordered with the Hardware Management Console such that no token ring exists in either the Support Elements or in the Hardware Management Console. The Ethernet features assume the use of 10/100 Mbit Ethernet facilities, requiring the use of CAT-5 Ethernet cabling. Since the Support Element Ethernet only feature includes two Ethernet adapters, there are two Ethernet connections available. For this scenario, both the Ethernet cables will be used.

The three communication protocols (SNA, TCP/IP and NetBios) used in Support Element to Hardware Management Console communication are defined for both adapters in the PCMCIA slots of the Support Elements.

It is necessary to connect the “top” Ethernetadapter cable to a customer-supplied local hub capable of 10/100 Mbit Ethernet rates. It is necessary to connect the Ethernet from at least one local Hardware Management Console to the same hub as the Support Elements.

It is necessary to connect the “bottom” Ethernet adapter cable to a customer-supplied local hub capable of 10/100 Mbit Ethernet rates. This second adapter has to be assigned an address on a separate subnet from the first adapter. Any Hardware Management Consoles
