Anonymous FTP Logon | IBM Safenet/400 instruction

Chapter 4 - SETTING UP FTP

Anonymous FTP Logon

To set up for Anonymous Logon, you must fill in the special FTP settings, and set the FTP Logon Server to Level 3 and the FTP Server Validation to Level 4.

Follow these steps for FTP:

1.From the SafeNet/400 Main Menu select Option 10 - Go to Special Jobs Menu

2.From the Special Jobs Menu select Option 3 - Change Special FTP Server Settings or use CHGFTPSET command along with F4

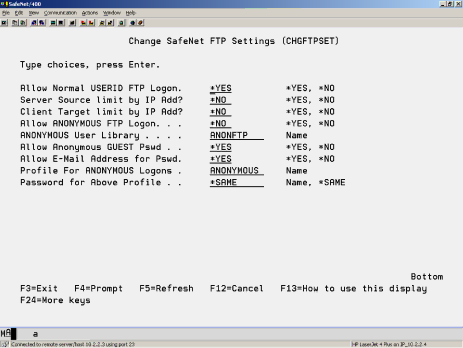

The Change SafeNet FTP Settings screen is displayed. Press F9 to see all parameters.

Here you will find the special parameters to control login access to the FTP Servers from both Anonymous and regular user IDs.

SafeNet/400 Reference Guide

♥ Copyright 2008 MP Associates of Westchester, Inc.

V8.50 - May 2008

4.1
