∙ Simplex Mode, ∙ Duplex Mode, ∙ Duo Mode | Kodak A-61097 manual

∙Simplex Mode

Simplex format allows one image to be exposed across the film width. A 24:1 reduction ratio is used for this format.

∙Duplex Mode

Duplex format allows front and back images of the same document to be exposed (at the same time) across the film width. A 40:1 or 50:1 reduction ratio is used for this format.

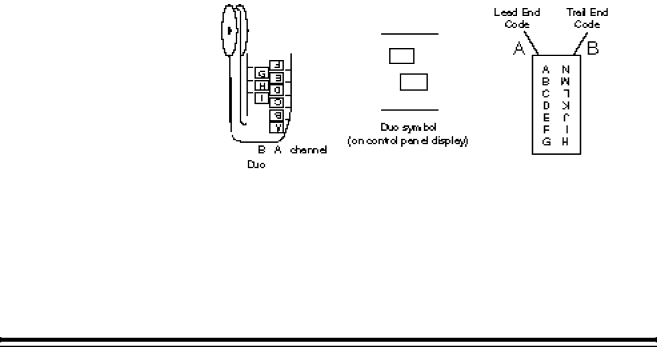

∙Duo Mode

Duo format allows documents to be filmed across one-half of the film width, with additional documents filmed on the adjacent side. A 40:1 or 50:1 reduction ratio is used for this format.

3-20	A-61097 May 1997

Image 70
