4 Input / Output 4

4.1 Outline

This section describes the digital and analog input and output capabilities of the NextMove PCI.

The following conventions will be used to refer to the inputs and outputs:

I/O . . . . . . . . . . . . . . Input / Output

DIN . . . . . . . . . . . . . Digital Input

DOUT . . . . . . . . . . . Digital Output

AIN . . . . . . . . . . . . . Analog Input

AOUT . . . . . . . . . . . Analog Output

Connections to the NextMove PCI card are made using the 100-pin cable assembly and DIN rail mounted NextMove PCI Breakout module (supplied as options, see Appendix A).

All connector numbers in the following sections refer to the breakout module.

4.2 100-pin edge connector

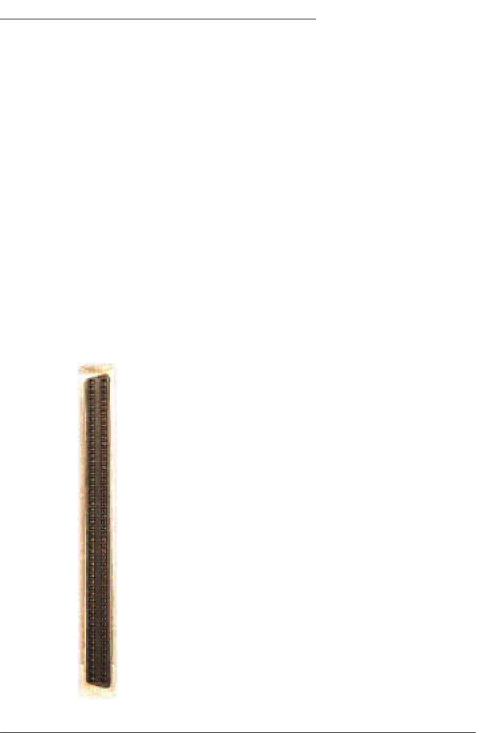

100 50

The pin assignment for the 100-pin D-type connector is shown in

Table 1.

51 1

MN1903

Input / Output 4-1
