Xantrex Technology XC5012, XC2524, XC3012 Drip Protection Rubber Boots, To install rubber boots

Page 40

Installation

Drip Protection Rubber Boots

Xantrex recommends that you install the supplied rubber boots over the XC Series DC terminals to provide drip protection.

To install rubber boots:

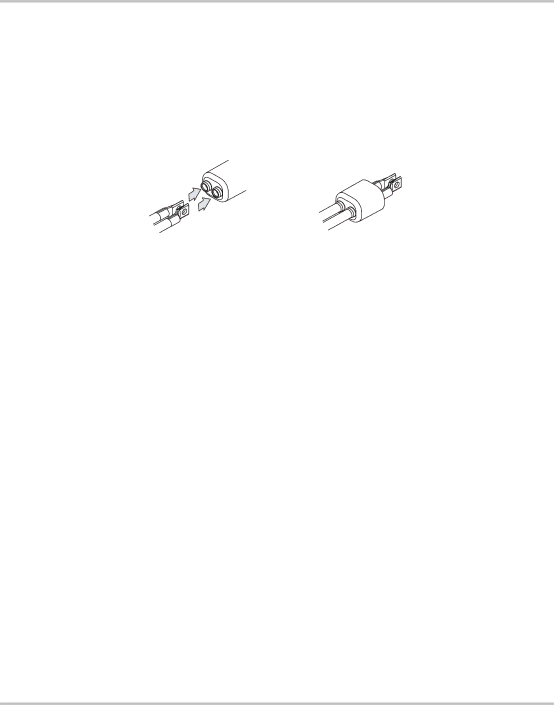

1.Before making the DC connections to the charger, feed the rubber boot over the charger end of the DC cables.

2.Perform all other DC connections as described in “To install DC wiring:” on page 2–3.

3.After the DC cables are connected to the charger, slide the boot up the cables and over the DC terminals. If you are only using one battery, slide the spare boots over the unused DC terminals.

2–14	975-0187-01-01
