9.Position the computer so the front faces you.

Removal and Replacement Procedures

9.Position the computer so the front faces you.

10.Open the computer as far as it will open.

11.Lift up the back edge of the keyboard and swing it forward until it rests on the top cover.

12.Disconnect the display inverter 1 and video cables 2 (Figure 5-16).

✎When installing the display, route the display video cable through the clip 3 in the top cover.

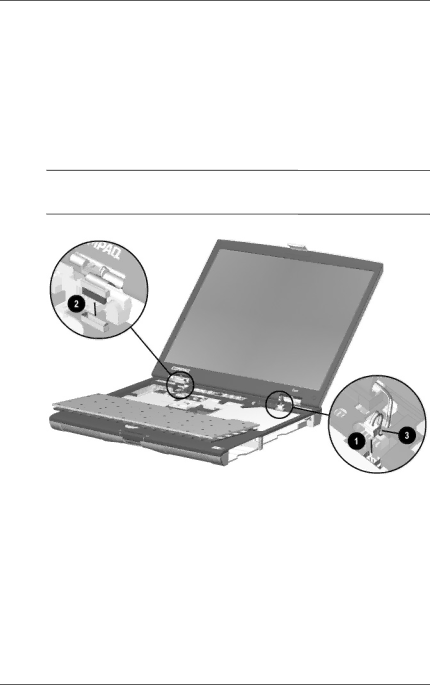

Figure 5-16. Disconnecting the Display Cables

5–22	Maintenance and Service Guide
