Configuring Radius Global Parameters

2Click Show All.

The Local User Table opens.

3Select a User Name.

4Select the Remove check box.

5Click Apply Changes.

The selected user is deleted and the device is updated.

Configuring RADIUS Global Parameters

Remote Authorization Dial-In User Service (RADIUS) servers provide additional security for networks. RADIUS servers provide a centralized authentication method for:

•Telnet Access

•Web Access

•Console to Device Access

To open the RADIUS Settings page, click System → Management Security → RADIUS in the tree view.

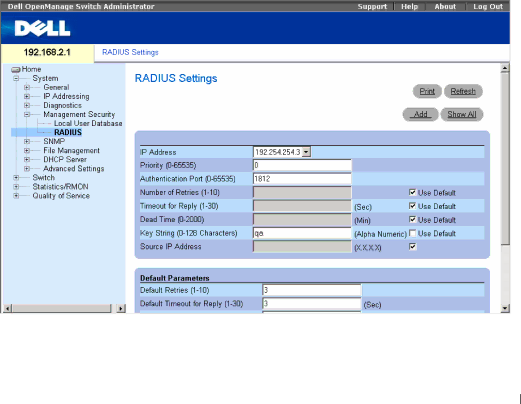

Figure 6-12. RADIUS Settings

•IP Address — The list of Authentication Server IP addresses.

Update with your book title

Page 71
