Symptom

Media jams occur frequently

Print is slow

Items to be checked	Corrective measures

Operational temperature	Use the printer in 20 to 25 °C
	temperature range.

Media type	Check whether the media type setting
	matches the type of media loaded. See
	How do I...Install a media roll in the
	printer in the printer and Remove a
	media roll from the printer.
	Use our recommended media. See Tell
	me about.Ordering media.

Media setting	Load the media correctly. See Replace
	a jammed media roll

Check whether there are any	Remove any obstructions. See The
obstructions in the carriage path or the	Problem is.. A head crash
media path.

Operational temperature	Use the printer in 20 to 25 °C
	temperature range.

A head crash

Clear head crashes by following the instructions on the front panel.

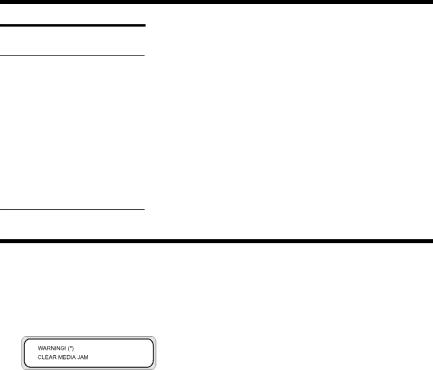

1.A front panel instruction is displayed.

*: head crash type 1 or 2. See The problem is.. an error message — Media crash.

ENWW

A head crash

105
