HP Designjet 9000s The SETUP menu, Bidirectional print position (Right) adjustment (YY BIDIR F.D (R)), Language for front panel (LANGUAGE), BOOT version display (BOOT VERSION)

1 196

Download 196 pages, 2.24 Mb

Display order: K -> Lm -> Lc -> Y -> M -> C

Parameters: sign (+/-), value (-32 to +31)

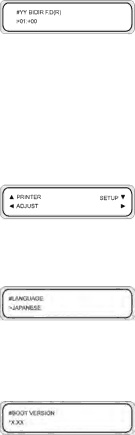

Bidirectional print position (Right) adjustment (YY BIDIR F.D (R))

Use this option to adjust the printhead bidirectional printing position (Right) in fine draft print mode.

Enter an adjustment value according to the BIDIRECTION F.D. adjustment pattern.

YY: Ink color

Display order: K -> Lm -> Lc -> Y -> M -> C

Parameters: sign (+/-), value (-32 to +31)

The SETUP menu

This menu is used to set or display printer setup options. When the ▼ key is pressed, printer setup options can be set.

Language for front panel (LANGUAGE)

This option sets Japanese or English for messages displayed on the front panel. The initial value is English.

Parameters: ENGLISH, JAPANESE.

BOOT version display (BOOT VERSION)

This option displays the BOOT version.

Parameters: none.

Acoustic warning (BEEP)

This option sets the acoustic warning on or off.
