NOTE The printer will continue to print while you are replacing an ink cartridge.

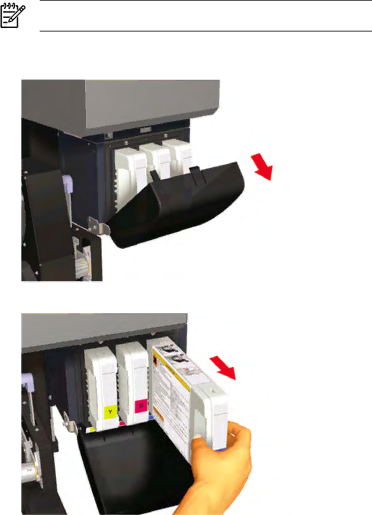

To replace an empty ink cartridge:

1.Open the ink cover.

2.Remove an ink cartridge from the printer.

Chapter 5 How do I… (ink topics)
