Menu operations

When the ONLINE key is pressed in the online idle mode, the printer enters offline mode. A menu group appears on the front panel and menu operations are enabled.

SHIFT

SHIFT

Menu structure

The Front panel menu has the following structure:

●Menu group — this menu is displayed at the first level. Some menus have several submenus.

●Second-level menus — these are submenus of the top menu group.

●Parameters — on selecting a menu item, you can select a value or command, or enter a value.

Making front panel selections and settings

To define a setting

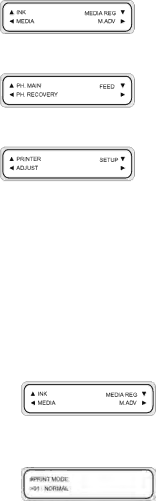

1.Select a menu with the arrow keys.

For example, select the MEDIA REG menu with the ▼ key.

2.Select an option in the MEDIA REG menu with the ▲ and ▼ keys.

For example, select PRINT MODE. You can return to step 1 by pressing the ◄ key.
