3.Remove the media, check there are no obstacles in the carriage path and the media path, and close the rear cover.

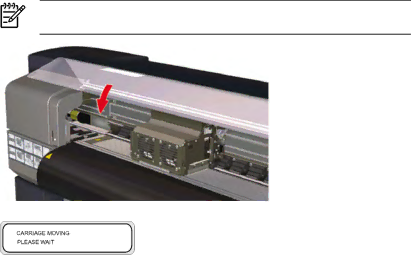

NOTE Take care not to damage the printheads when removing any media between the head carriage and the printing platen.

4.The carriage will move to its home position.

5.Load media again. See How do I... Install a media roll in the printer.
