13.Select the Yes option if you want to print a test page after the software is installed. Select the No option if you do not want to print a test page after the software is installed.

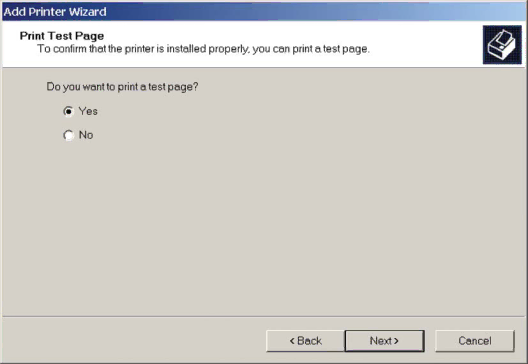

Click the Next > button to continue to the Completing the Add Printer Wizard screen. Figure 3-8Add Printer Wizard — Print Test Page screen

14.Review the installation details, and then click the Finish button to complete the Add Printer Wizard.

Create a new TCP/IP port for a direct connection

Perform the following when the product is connected via the network without using a print server and a printer port does not exist:

1.On the Start menu, click the Settings option, and then

Windows XP Home: Click the Printers and Other Hardware Devices option.

-or-

Windows XP Professional, Windows Server 2003, and Windows Server 2008: Click the Printers and Faxes option.

-or-

Windows Vista or Windows 7: Under the Hardware and Sound category, click the Printer option.

2.Click the Add a printer option on the Printer Tasks pane.

3.Click the Next button on the Add Printer Wizard welcome dialog box.

ENWW

General Microsoft Windows installation instructions 63
