Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
7.13Front I/O Devices
1.Prepare the computer for disassembly (Section 7.1).
2.Remove the computer cover (Section 7.5).

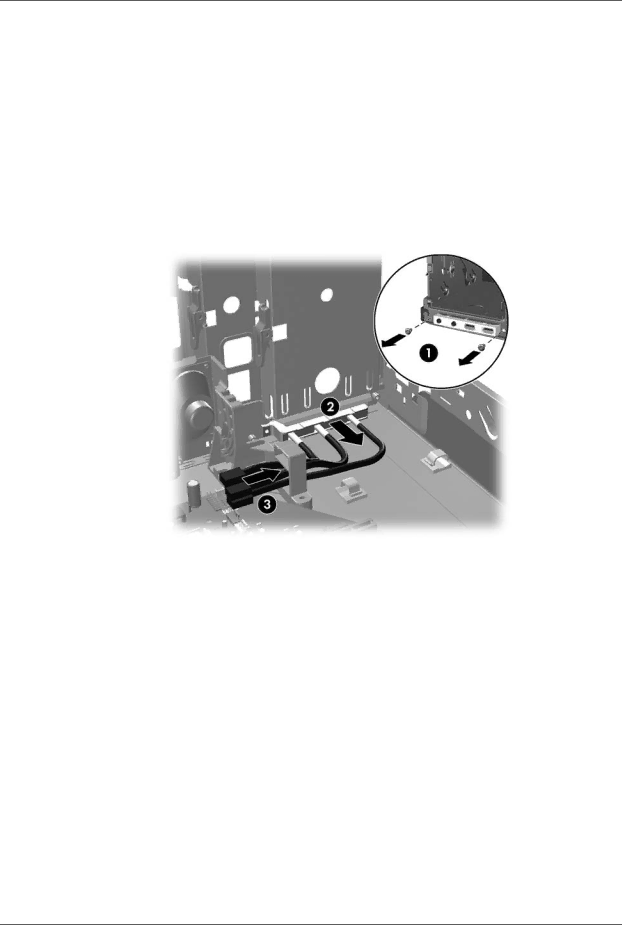

3.Remove the two screws that secure the front I/O device to the chassis 1.
4.Rotate the drive cage to its full upright position.
5.Disconnect the front I/O cable from the system board.
6.Push the front I/O device into the chassis 2 and snake the cable through the tunnel 3 to remove the device from the chassis.
To reinstall the front I/O device, reverse the removal procedure.
