Woods Equipment DSO1260Q DS1260 Q / DS1440 Q / DSO1260 Q, Slip Clutch Drive Assembly Mounted

Page 74

DS1260 (Q) / DS1440 (Q) / DSO1260 (Q)

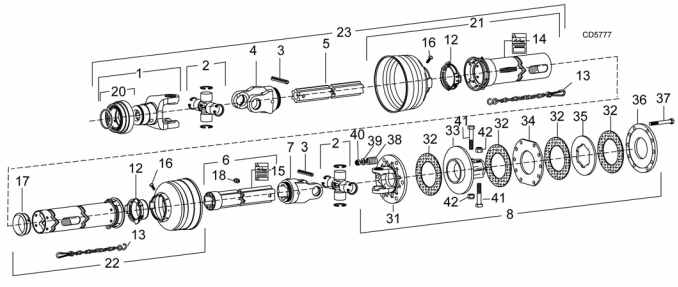

SLIP CLUTCH DRIVE ASSEMBLY - MOUNTED

REF

PART

QTY

DESCRIPTION

A

57419

1

Complete 540 RPM drive assembly -







DS1260 -or-

A

57290

1

Complete 1000 RPM drive assembly -







DS1260Q -or-

A

57422

1

Complete 540 RPM drive assembly -







DS1440, DSO1260 -or-

A

57425

1

Complete 1000 RPM drive assembly -







DS1440Q, DSO1260Q

1

40563

1

Yoke, 1-3/8 - 6 Spline ASG - DS1260,







DSO1260, DS1440 -or-

1

40757

1

Yoke, 1-3/8 - 21 Spline AS - DS1260Q,







DSO1260Q, DS1440Q -or-

1

1001525

1

Yoke, 1-3/4 - 20 Spline AS

2

40566

2

Cross and bearing

3

40765

2

Spring pin 10 X 90

4

40750

1

Inboard yoke S4

5

40752

1

Inner profile S4

6

44676

1

Outer profile & sleeve S5

7

40751

1

Inboard yoke S5

8

57421

1

Friction clutch, 1-3/4, 20-spline

1240766 2 Bearing ring SC25

1340777 2 Anti-rotation chain

14

18864

1

Decal, Danger Rotating driveline

15

33347

1

Decal, Danger guard missing

1640778 2 Screw

1740767 1 Support bearing

1840779 1 Grease fitting

REF

PART

QTY

DESCRIPTION

20

40758

1

Slide lock collar repair kit

21

40727

1

Outer guard half

22

57273

1

Inner guard half - DS1260 (Q)

22

57271

1

Inner guard half - DS1440 (Q),







DSO1260 (Q)

23

40754

1

Male drive half, Complete (540 rpm) -







DS1260 -or-

23

1003455

1

Male drive half, Complete (1000 rpm) -







DS1260Q -or-

23

57423

1

Male drive half, Complete (540 rpm) -







DS1440, DSO1260 -or-

23

57426

1

Male drive half, Complete (1000 rpm) -







DS1440Q, DSO1260Q

3157441 1 Flange yoke

3257432 4 Friction disc

33

57442 1 Hub 1-3/4 - 20 I.C. -SN

3457443 1 Drive plate

3557256 1 Drive plate - SN

3657257 1 Thrust plate

37

57263

6

M12 x 115 mm HHCS

38

57258

6

Spring, compression

39

57265

6

Flat washer, 24 x 13 x 2.5 mm

40

57264

6

M12 Hex lock nut

41

57262

2

M12 x 65 mm HHCS

42

57261

2

M12 Hex lock nut

HHCS Hex Head Cap Screw

74 Parts

MAN0571 (Rev. 6/15/2007)
