Dubbing to/from a Cassette with Digital Video Equipment

Digital video equipment fitted with the DV terminal lets you edit, copy and transfer data digitally, with virtually no generation loss in image and sound quality. The DV terminal is for both line-in and line-out, since a single DV cable can handle data in both directions.

•If a digital VCR is connected and an anomalous signal is sent from the VCR, the images recorded on the tape may also be anomalous (although it may not appear so on the TV image), or not recorded at all.

•You are unable to dub tapes recorded with the copyright protective signal.

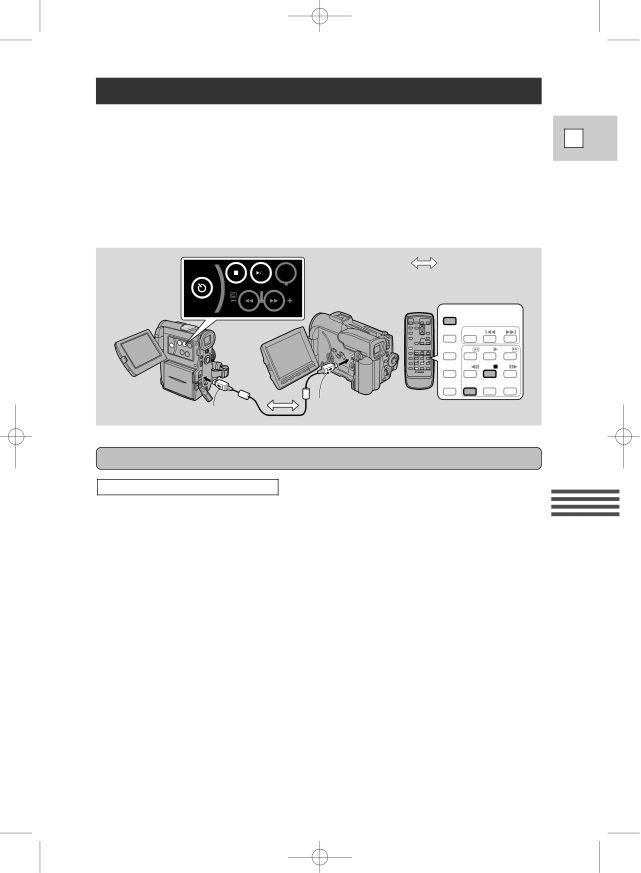

: Signal flow

REC PAUSE					ON/
					ON/
					OFF
					OFF
	REC SEARCH D.EFFECTS

(LINE-IN)

REC

PAUSE

ZERO SET	SEARCH
MEMORY	SELECT
AUDIO	REW	PLAY	FF
DUB.
A/V	– /	STOP	+ /
INSERT

REMOTE PAUSE SLOW ⋅ 2

Side with arrow

Side with arrow

E

Preparations

Example dubbing to the camera

1.Connect the camera and the other digital device.

•Connect the Canon CV-150F DV cable (optional) with the sides of the plugs marked with the arrows facing as shown above.

2.Prepare the other device.

•Turn on the power and load a recorded cassette.

3.Turn the camera’s POWER dial to VCR and load a blank cassette.

•DV IN appears in the display.

Editing

81

Image 81
