5.17 Pick Up Roller Ass'y

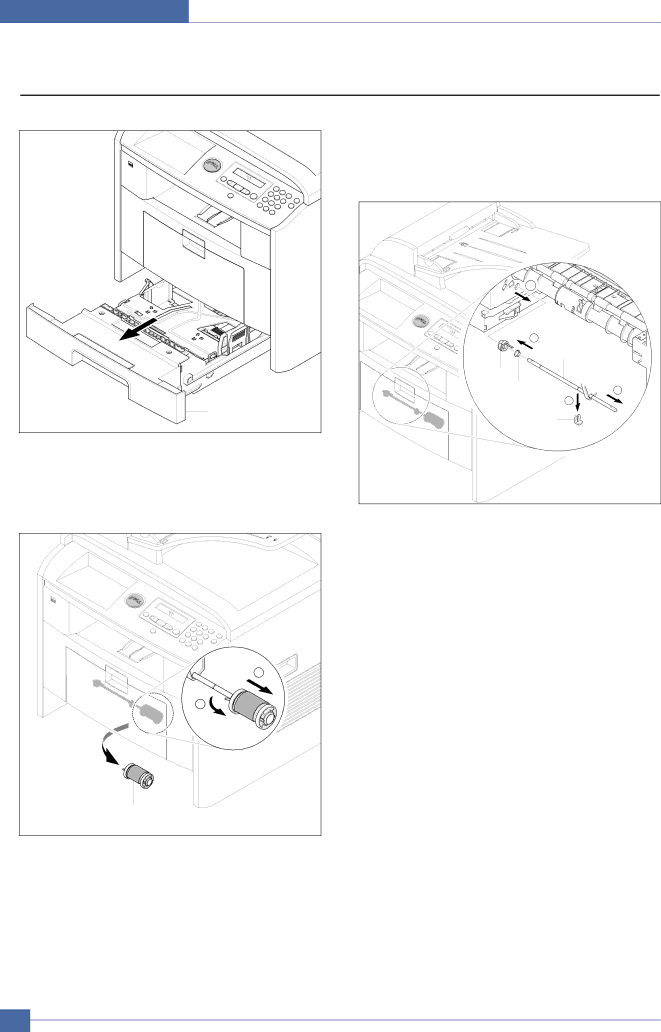

1. Take out the Cassette.

Cassette

2.To remove the Pick Up Roller Ass'y, first lift the notch attached to the Pick Up Roller Ass'y from the Shaft, then slide the Pick Up Roller Ass'y from left to right and it will be released completely, as shown below.

2

1

Pick Up Roller Ass'y

3.To remove the Shaft, first release the locker and slide the Shaft from left to right, then lift the notch attached to the Cam so that it's released from the Shaft. Then release the Bush from the Shaft and remove the Shaft from the Duplex Guide Housing, as shown below.

	2
	3
	Shaft
Cam
Bush	4
	4
	1
	Locker

5-26Service Manual
