Precautions

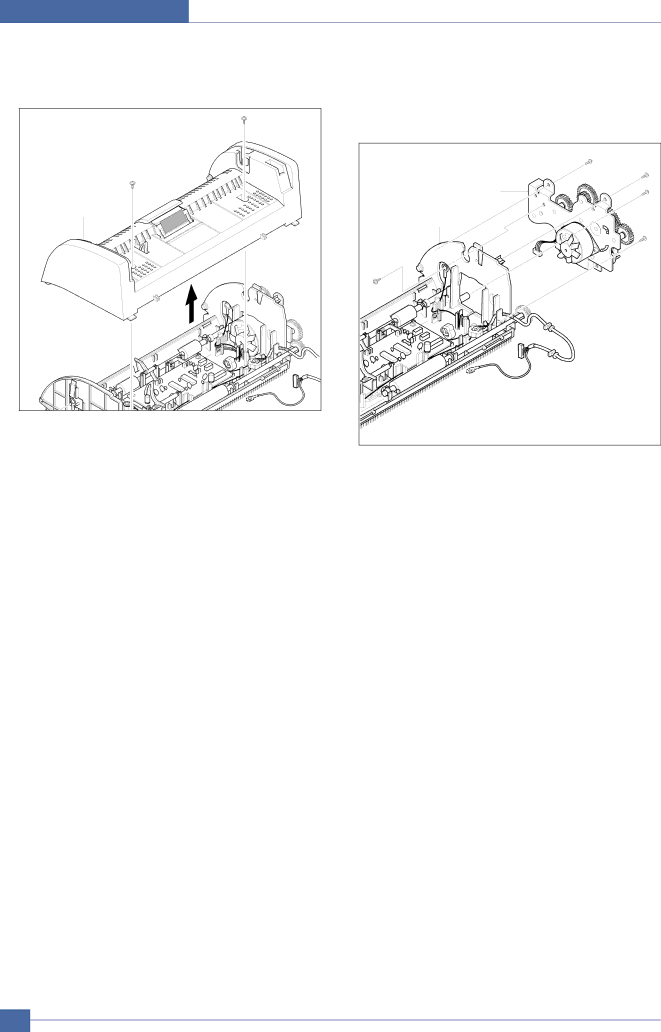

6.Remo the two screws securing the ADF Upper and remove it, as shown below.

ADF Upper

Notice : Before removing the ADF Engine Ass'y take great care to note the position of the Ferrite Core and the Motor Harness routing. When refitting the ADF Engine Ass'y ensure that the Harness and Ferrite are properly located and are clear of the Motor Fan and White Bar Clip.

7.Unplug the one connector and remove four screws securing the ADF Motor Ass'y and then remove the one screw securing the Ground Cable, as shown below. Then take out the ADF Motor Ass'y.

ADF Motor Ass'y

ADF Lower

5-16Service Manual
