Precautions

5.16 Fan

1.Before you remove the Fan, you should remove:

-Rear Cover (Refer to 5.4)

-Side Cover Right (Refer to 5.6.3)

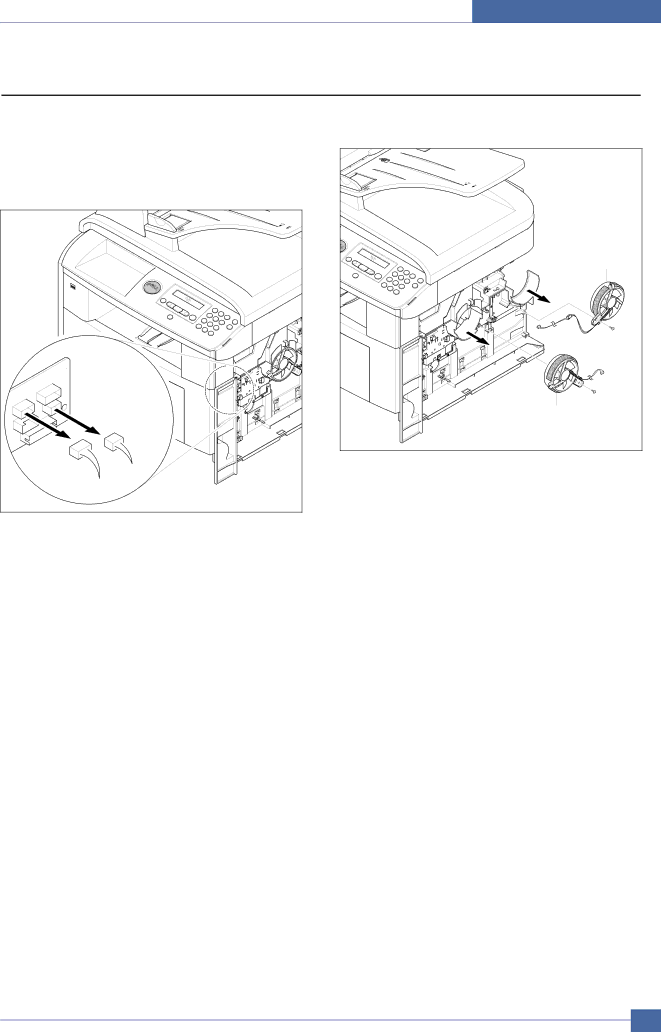

2.Unplug the two connectors from the Connection PCB,

as shown below.

Connection

PCB

Duplex Fan

Main Fan

3.Remove the two screws securing the Fans and then pull the Fans (Main, Duplex).

Duplex Fan

Main Fan

Service Manual 5-25
