6.2.1 Clearing Document Jams

When a document jams while it passes through the ADF, Document Jam appears on the display.

NOTE: To prevent document jams, use the document glass for thick, thin or mixed documents.

1. Remove the remaining documents from the ADF.

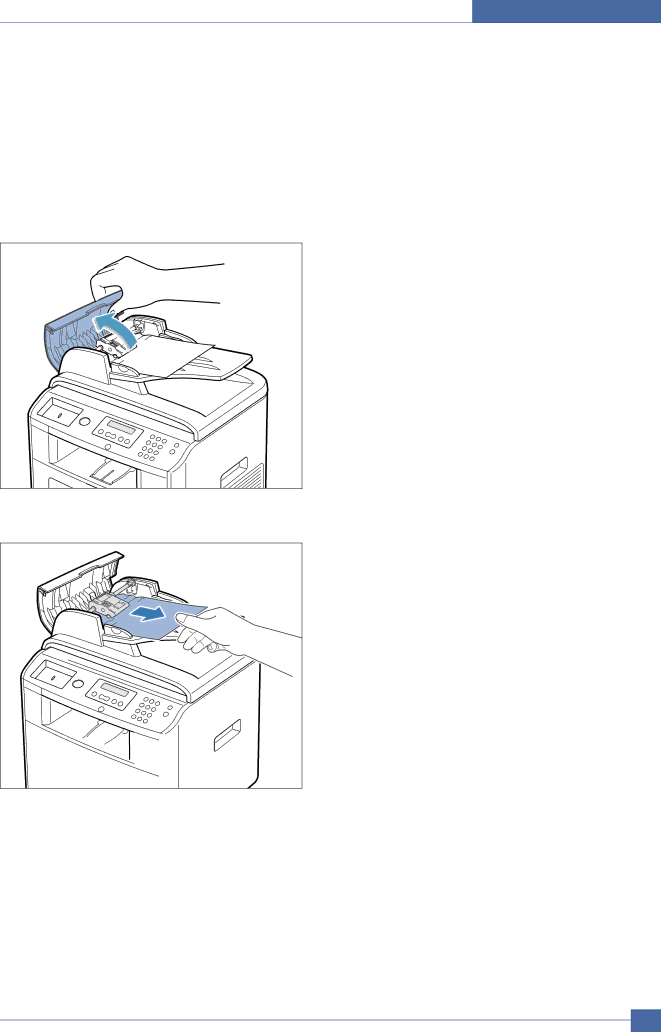

If the document is jammed in the paper feed area:

a. Open the ADF cover.

c. Close the ADF cover. Then reload the document into the ADF.

b. Remove the document by gently pulling it out.

Service Manual	6-3

Image 73

Dell 1815DN service manual Clearing Document Jams, If the document is jammed in the paper feed area
