Precautions

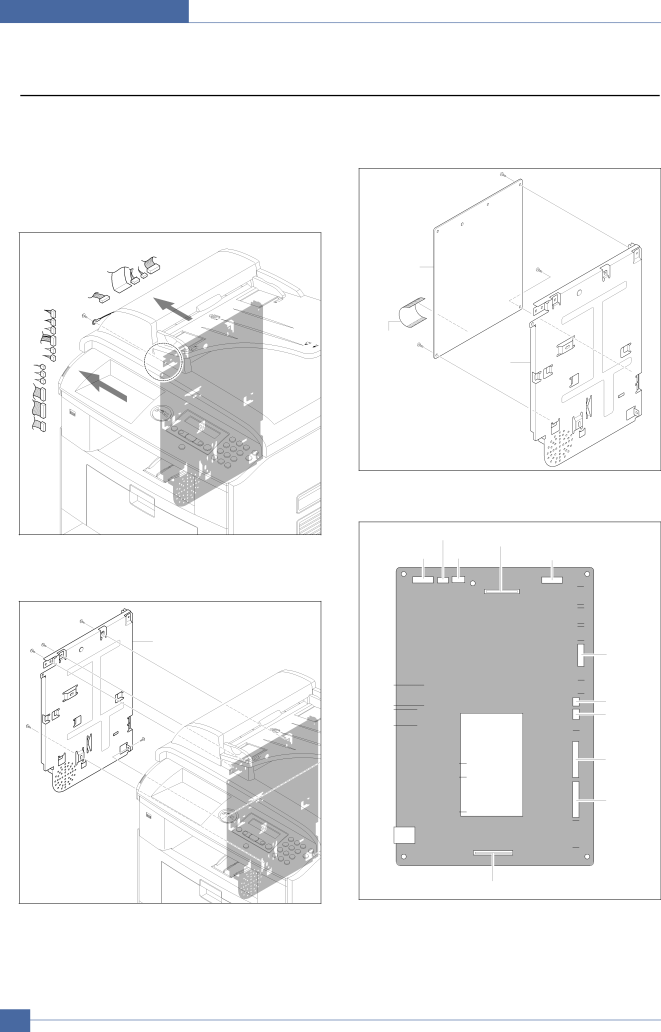

5.10 Shield Controller Ass'y

1.Before you remove the Shield Controller Ass'y, you should remove:

-Rear Cover (Refer to 5.4)

-Side Cover Left (Refer to 5.6.4)

2.Unplug the all connectors and remove the one screw securing the Ground Cable.

4.Remove the three screws securing the Main PBA to the Bracket and unplug the Film Cable and then remove the Main PBA.

Main PBA

Film Cable

Shield

5. The connectors are located, as shown below.

3.Remove the five screws securing the Shield Controller Ass'y and remove it.

Flat Cover

CCD

ADF Flat Motor

USB

Line

Network

USB

Tray2

OPE Panel

USB Host

Cartridge

LSU_5V

LSU

Thermo

MPF_SEN

MPF

REGI

Pick Up

BLDG

Engine

Duplex Motor

Modem PBA

5-18Service Manual
