Fluke 2635A Initializing a Memory Card

Memory Card Operations

Initializing a Memory Card

3

3-7

Initializing a Memory Card

Perform the procedure in Figure 3-3 to initialize (format) a memory card. Memory cards

can also be formatted at a PC if it is equipped with a memory card reader. (Formatting at

a PC uses the format utility supplied with the memory card reader.)When the memory

card is formatted, a standard DOS file system and directory are put into the memory on

the card. To exit at any time (formatting not completed), press the C key.

Note

Any scan data that may be stored in the internal memory waiting to be

written to a valid memory card (see paragraph 3-8 Changing the Memory

Card During Scanning) will be lost when formatting a memory card.

Init

StAt

dir

dAtA

SEtUP

FILES

ENTER

yES

no

Init

ENTER

Selecting the INITIALIZATION mode. Insert the

memory card to be initialized. Press the FILES

key to access the FILES menu. Press the

up/down arrow keys until Init is displayed, then

press the ENTER key. The menu changes to

Init. If an error message appears, see Table 3-1.

Verifing the INIT mode. To verify the selection

of the initialization mode, press the up/down

arrow keys until yES is displayed in the Init menu,

then press the ENTER key. To exit the

procedure, select no and then press the ENTER

key. If yES is selected, the menu changes to

SUrE.

Typical

Required

yES

no

SUrE

ENTER

Initializating the memory card. Press the

up/down arrow keys to select yES or no in the

SUrE menu, then press the ENTER key. "yES"

will initialize the memory card, erasing all

previous data (if any); "no" cancels the

procedure. If Err 1 CArd appears, the small

switch on the card may be in the write-protect

position. Reposition the switch and repeat this

procedure.

FILES

op39f.eps

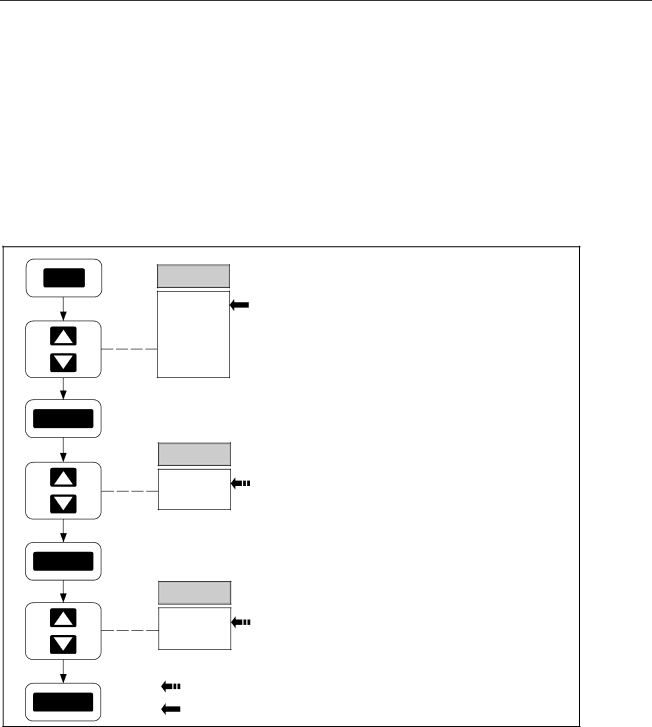

Figure 3-3. Initializing a Memory Card
